1 Background

Animals live and move in structured, heterogeneous space. Most analyses of movement are not limited to describing the properties of displacement, but ask some questions with respect to spatial variables. Spatial data objects in R can be rather complex - broadly, a landscape can be described in terms of vectors, which include polygons (e.g., - boundaries of a projected area), lines (e.g. roads), points (e.g. GPS locations) or in terms of a raster which is just a grid (usually square) where each cell has a particular value, whether discrete (e.g., a land-cover type) or continuous (e.g., an elevation).

1.1 Packages for spatial data

There are quite a few packages that are very helpful for working with raster and spatial data. Here’s a list, in approximate decreasing order of usefulness:

  1. sp provides the classes for spatial data; makes coordinate transformations simple
  2. sf new package that may eventually replace sp due to much simpler data structure
  3. raster general-purpose raster functions; reads raster objects into R (very fast)
  4. rgdal reads shape files into R
  5. rgeos a collection of excellent methods for working with spatial objects

1.2 Lesson objectives

In this lab, we will:

  1. Load and plot line and polygon shape files
  2. Load and plot a raster file of elevation
  3. Load and plot movement data of Caribou
  4. Reproject rasters and shapefiles
  5. Create a time-since-fire field from our fire polygon
  6. Rasterize shapefiles

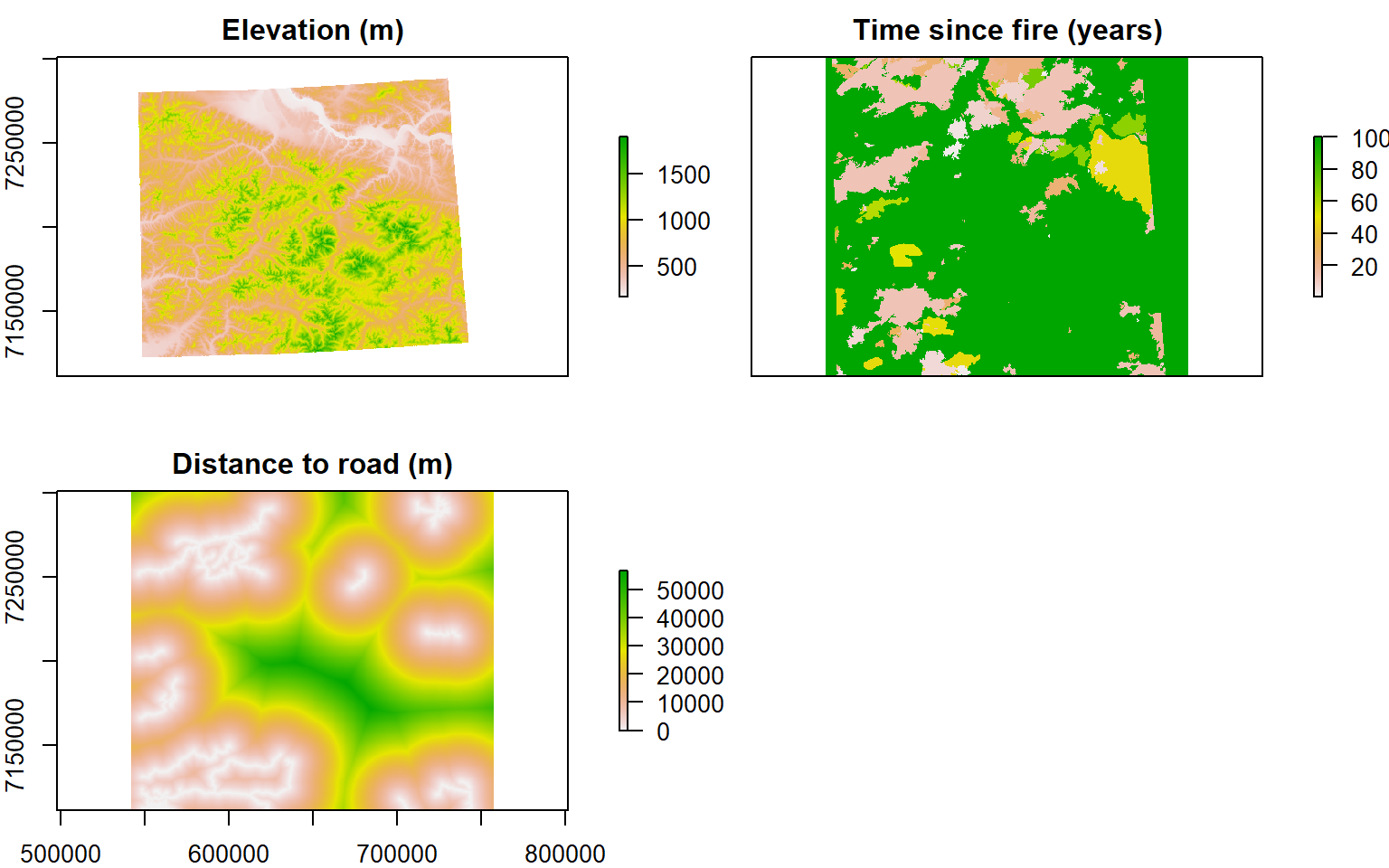

  7. Create and save a RasterStack for use in a resource selection function
pcks <- list("sp", "sf", "raster", "rgdal", "rgeos", "ggmap")
sapply(pcks, require, char = TRUE)
## [1] TRUE TRUE TRUE TRUE TRUE TRUE

2 Working with shapefiles in R

From Wikipedia: The shapefile format is a popular geospatial vector data format for geographic information system (GIS) software. It is developed and regulated by Esri as a (mostly) open specification for data interoperability among Esri and other GIS software products. In practice, is is actually several files, all of which have the same name and the following extentions:

  • .shp - shape format; the feature geometry itself
  • .shx - shape index format; a positional index of the feature geometry to allow seeking forwards and backwards quickly
  • .dbf - attribute format; columnar attributes for each shape, in dBase IV format
  • .prj - projection format; the coordinate system and projection information, a plain text file describing the projection using well-known text format.

(This list is not complete - see the Wikipedia page).

2.1 Polygon shapefile of AK fires

We downloaded the “Perimeters since 1940” file from here the AK Large Fire Database, then clipped the file to the study extent before the workshop (to minimize file size).

2.1.1 Working With the sp package

fires.sp <- readOGR("./_data/fmch_fire_tws.shp")
## OGR data source with driver: ESRI Shapefile
## Source: "./_data/fmch_fire_tws.shp", layer: "fmch_fire_tws"
## with 200 features
## It has 51 fields
## Integer64 fields read as strings:  FIREID StrThreat StrBurned

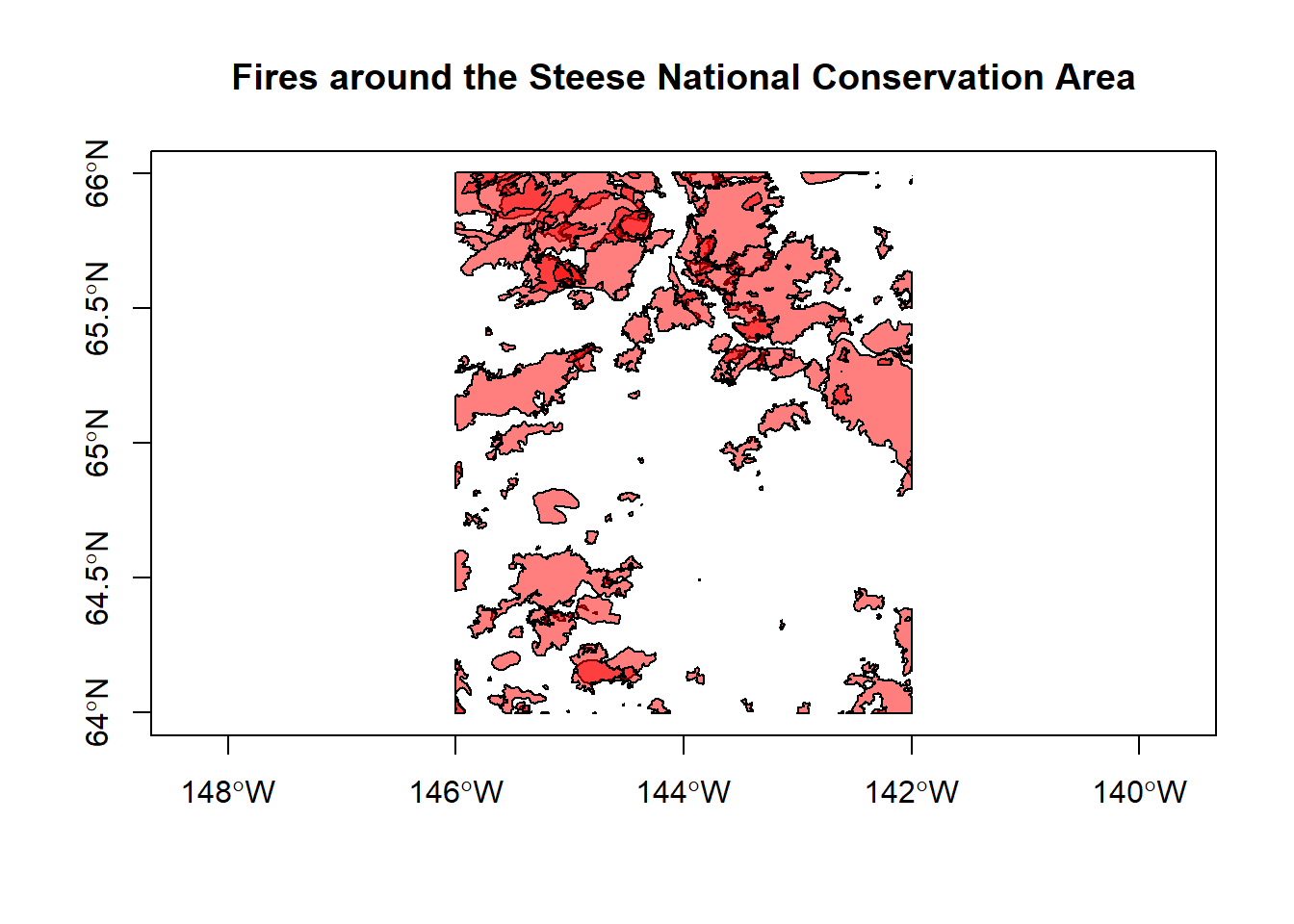

plot(fires.sp, main = "Fires around the Steese National Conservation Area", axes=TRUE, col=alpha(("red"),.5))

Note, fires.sp is an exotic object called a SpatialPolygonsDataFrame, which contains a lot of important spatial information. Features of this object include:

  • The polygon information (this is huge!)
head(fires.sp@data)
##              FireName FireYear CalcAcres  PerimDate        PerimTime
## 0        Jagged Ridge     2009   53889.4 2009/08/12 2009/08/12 12:00
## 1       Edwards Creek     2004  278116.0 2008/04/25 2008/04/25 13:00
## 2 Mile 53 Taylor Fire     1953   15228.9 1953/11/01 1953/11/01 14:00
## 3           Porcupine     2003    1195.1 2003/11/01 2003/11/01 16:00
## 4          BEAR CREEK     2011     401.4 2011/06/04 2011/06/04 17:00
## 5         Mississippi     2013   67424.7 2013/10/29 2013/10/29 14:00
##   AgencyAcre Method    Source  SrcMethod             SrcClass   EditDate
## 0          0   <NA>       GPS Helicopter                 <NA> 2009/08/12
## 1          0   <NA>      <NA>       <NA>                 <NA> 2008/04/25
## 2          0   <NA>      <NA>       <NA>                 <NA> 2007/11/20
## 3          0   <NA> Digitized      Image                 <NA> 2007/12/03
## 4          0   <NA>       GPS  FixedWing B - Within 90 Meters 2011/06/05
## 5          0   <NA>       GPS  FixedWing                 <NA> 2013/12/10
##                                                                                                    Comments
## 0                                FOBs flew perimeter of fire closely.  Acreage decreased roughly 500 acres.
## 1                                                                          Perimeter updated by NPS in 2006
## 2   Perimeter digitized using hand drawn fire map and 1976 landsat image to obtain estimated location fire.
## 3                                           Perimeter heads-up digitized from 2003 and 2004 Landsat imagery
## 4                                                                 Flown by Amy Scraba, digitized by rmmikol
## 5 Added Spot Fire created by wind event, Mike Reggear provided the spot fire perimeter.  Edited by Gschmunk
##   FIREID Final LATESTPERI Record_ FalseAlarm                Complex
## 0  32702    No        Yes     497       <NA> Crazy Mountain Complex
## 1   1719    No        Yes     234       <NA>                  Eagle
## 2  27522    No        Yes    <NA>       <NA>                   <NA>
## 3   1155    No        Yes     283       <NA>                   <NA>
## 4  34986    No        Yes     295       <NA>                   <NA>
## 5  36215    No        Yes     117       <NA>                   <NA>
##   AFSFire_ DOFFire_ USFSFire_ AddFire_ Prescribed EstCost EstAcres
## 0     E27V     <NA>    PDE27V     <NA>       <NA>       0  53889.4
## 1     A4WG     <NA>    PDA4WG     <NA>       <NA>       0 243900.0
## 2        1     <NA>      <NA>     <NA>       <NA>       0  15280.0
## 3     <NA>   311283      <NA>     <NA>       <NA>       0    640.0
## 4     F4GC     <NA>      <NA>     <NA>       <NA>       0    314.0
## 5     HH8N   332117    PDHH8N     <NA>       <NA>       0  67338.0
##   StrThreat StrBurned MgmID MgmOffId MgmOption Latitude Longitude
## 0         0         0   AFS      UYD   LIMITED 65.54806 -144.1172
## 1         0         0   AFS      UYD   LIMITED 65.51722 -143.1700
## 2         0         0  <NA>  CHICKEN      <NA> 64.00000 -142.0000
## 3         0         0   DOF      FAS   LIMITED 64.71667 -144.7000
## 4         0         0   AFS      UYD   LIMITED 65.11028 -145.3222
## 5         0         0   AFS      MID   LIMITED 63.89305 -145.9931
##               MapName NearestWX OriginOwn OriginUnit   DiscDate DiscSize
## 0          Circle C-1      <NA>       STA        L&W 2009/07/26      0.5
## 1 Charley River (C-5)      <NA>       BLM        NOD 2004/06/14   3289.0
## 2                <NA>      <NA>      <NA>       <NA> 1953/05/31      0.0
## 3                <NA>      <NA>       STA        L&W 2003/06/14      0.0
## 4          CIRCLE A-3      <NA>       BLM        NOD 2011/05/31     50.0
## 5        MT HAYES D-4      <NA>       MIL       Army 2013/05/30      1.0
##       IADate IASize  CntrlDate    OutDate InitBehave     PrimFuel
## 0       <NA>      0       <NA> 2009/09/28       <NA>  Mixed Trees
## 1 2004/06/16   3289 2004/10/19 2004/10/19       <NA>         <NA>
## 2       <NA>      0       <NA> 1953/06/27       <NA>         <NA>
## 3       <NA>      0       <NA>       <NA>       <NA>         <NA>
## 4       <NA>      0 2011/06/27 2011/06/27   Creeping         <NA>
## 5       <NA>      0       <NA> 2013/12/31   Creeping Black Spruce
##    GenCause  SpecCause Slope Aspect Elevation        AREA       LEN
## 0 Lightning  Lightning  0-25  North 0501-1500 0.042239175 1.8514115
## 1 Lightning  Lightning  <NA>   <NA>      <NA> 0.218502973 9.1513134
## 2      <NA>    Smokers  <NA>   <NA>      <NA> 0.011287354 0.5943585
## 3 Lightning       <NA>  <NA>   <NA>      <NA> 0.000910141 0.1842077
## 4 Lightning  Lightning  <NA>   <NA>      <NA> 0.000310019 0.1124273
## 5     Human Incendiary  0-25   East 1501-2500 0.050106743 2.0510230
  • the projection
fires.sp@proj4string
## CRS arguments:
##  +proj=longlat +datum=NAD83 +no_defs +ellps=GRS80 +towgs84=0,0,0
  • the boundary box
fires.sp@bbox
##          min        max
## x -146.00306 -141.99694
## y   63.99694   66.00306

Accessing all of these data easily can be challenging, and plotting SpatialPolygonsDataFrame objects outside of sp is a bit of a mess.

2.1.2 With the new sf package

Instead of doing this, we’ll use a new package called sf, short for “simple features”. Rather than a complex structure with slots, spatial objects in sf are stored as data frames, with the feature geometries stored in list-columns. It’s WAY simpler, and compatible with all packages in the tidyverse, such as dplyr, ggplot2, and many others.

fires <- st_read("./_data/fmch_fire_tws.shp")
## Reading layer `fmch_fire_tws' from data source `C:\Users\elie\Box Sync\teaching\AlaskaWildlifeSociety\coursewebsite\_data\fmch_fire_tws.shp' using driver `ESRI Shapefile'
## Simple feature collection with 200 features and 51 fields
## geometry type:  MULTIPOLYGON
## dimension:      XYZ
## bbox:           xmin: -146.0031 ymin: 63.99694 xmax: -141.9969 ymax: 66.00306
## epsg (SRID):    4269
## proj4string:    +proj=longlat +datum=NAD83 +no_defs

You can see that it gives you a nice printout of summary information here, including the projection.

class(fires)
## [1] "sf"         "data.frame"

It functions as both an sf object and a data.frame. Handy!

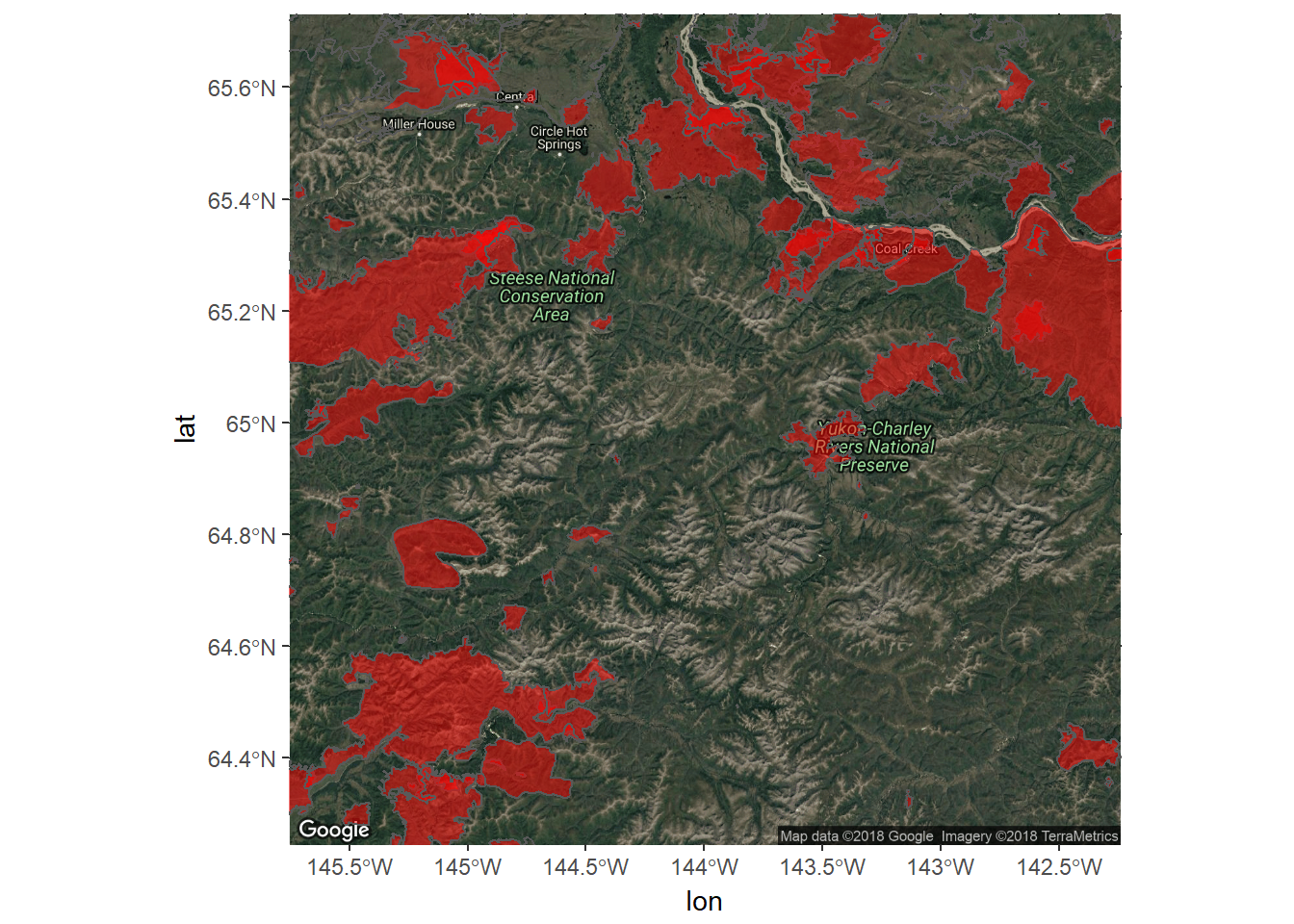

If we want to make a quick ggmap like we did in the “Data Visualization” tutorial, we can do so. The unname function just removes the names of the bounding box, because the sf bounding box is a bit different than the sp one we used earlier.

mymap <- get_map(location = unname(st_bbox(fires)), maptype="hybrid")

ggmap(mymap) +
  geom_sf(data = fires, inherit.aes = FALSE, fill = "red", alpha = 0.5)

Some of the polygons overlap, meaning that certain areas have burned more than once since 1940. We’ll have to consider that when we use this layer for analyses.

2.2 Polyline shapefile: Roads

Here, we load a shape file of roads.

roads <- st_read("./_data/fmch_roads_tws.shp")
str(roads)
## Classes 'sf' and 'data.frame':   897 obs. of  12 variables:
##  $ osm_id    : Factor w/ 895 levels "107075134","107075146",..: 723 392 487 731 48 100 210 683 267 53 ...
##  $ bridge    : Factor w/ 1 level "yes": NA NA NA NA NA NA NA NA NA NA ...
##  $ highway   : Factor w/ 8 levels "footway","path",..: 4 6 6 4 4 6 4 4 6 4 ...
##  $ layer     : Factor w/ 1 level "1": NA NA NA NA NA NA NA NA NA NA ...
##  $ name      : Factor w/ 185 levels "49 Alaska Pipeline Road",..: 10 NA NA 166 NA NA NA NA NA NA ...
##  $ oneway    : Factor w/ 2 levels "no","yes": NA NA NA NA NA NA NA NA NA NA ...
##  $ smoothness: Factor w/ 0 levels: NA NA NA NA NA NA NA NA NA NA ...
##  $ surface   : Factor w/ 6 levels "asphalt","dirt",..: NA NA NA 1 NA 6 NA NA NA NA ...
##  $ tunnel    : Factor w/ 0 levels: NA NA NA NA NA NA NA NA NA NA ...
##  $ width     : Factor w/ 0 levels: NA NA NA NA NA NA NA NA NA NA ...
##  $ z_index   : Factor w/ 5 levels "13","23","27",..: 4 4 4 4 4 4 4 4 4 4 ...
##  $ geometry  :sfc_MULTILINESTRING of length 897; first list element: List of 1
##   ..$ : num [1:5, 1:3] -146 -146 -146 -146 -146 ...
##   ..- attr(*, "class")= chr  "XYZ" "MULTILINESTRING" "sfg"
##  - attr(*, "sf_column")= chr "geometry"
##  - attr(*, "agr")= Factor w/ 3 levels "constant","aggregate",..: NA NA NA NA NA NA NA NA NA NA ...
##   ..- attr(*, "names")= chr  "osm_id" "bridge" "highway" "layer" ...

You can see the clean structure of an sf object here.

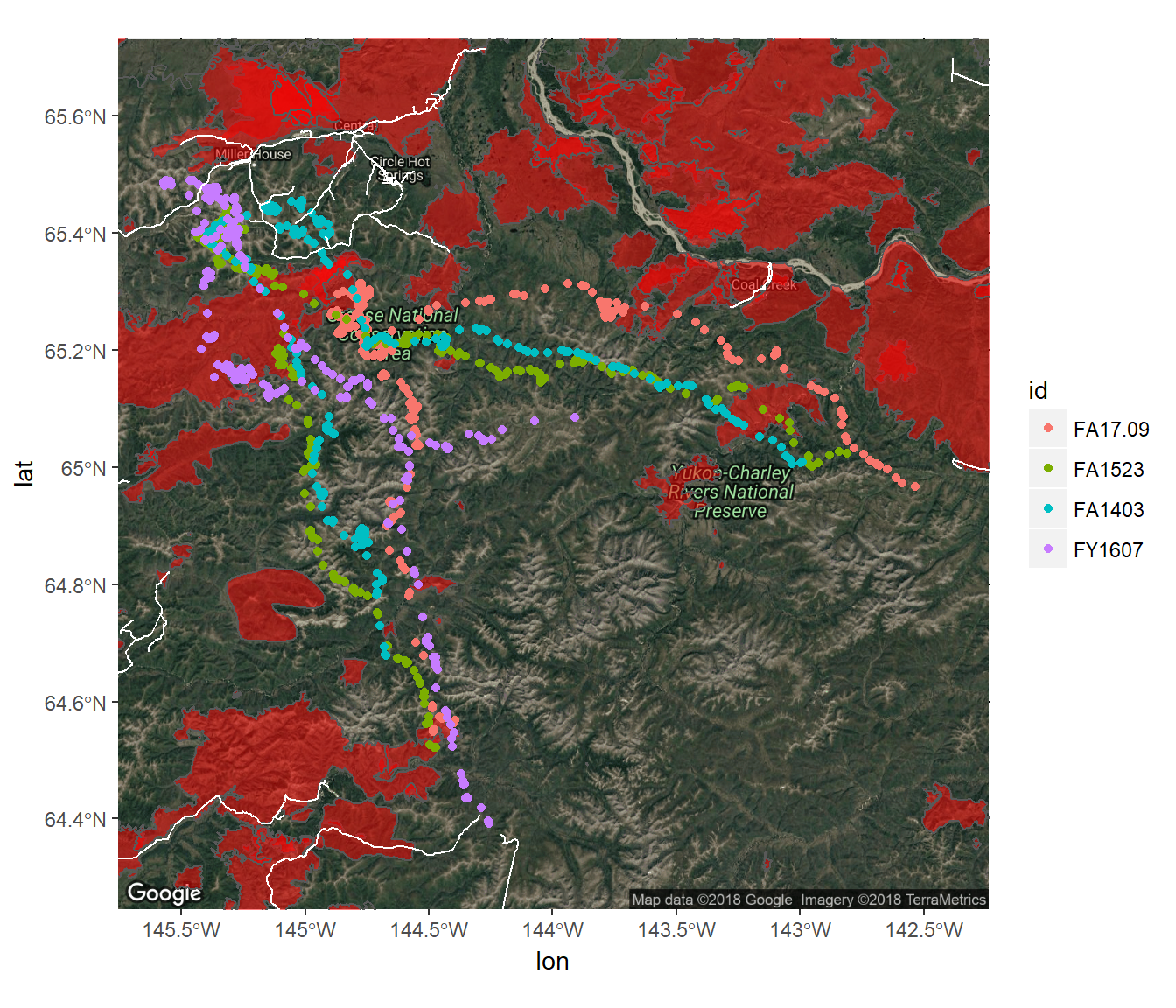

Now we can load our caribou data (in data.frame format) on top to see how their locations are distributed in relation to the fires and roads:

load("./_data/caribou.df.rda")
ggmap(mymap) +
  geom_sf(data = fires, inherit.aes = FALSE, fill = "red", alpha = 0.5) +
  geom_point(data = caribou.df, aes(x = lon, y = lat, col = id)) +
  geom_sf(data = roads, inherit.aes = FALSE, col = "white")

3 Using rasters in R

Rasters are very efficient spatial matrices. They break up space into equal sized grids and store attributes at each grid point. One common way they are stored is as geoTiff objects. We downloaded this DEM from the USGS National Elevation Dataset page here. Load rasters into R with the raster command:

3.1 Digital Elevation Model

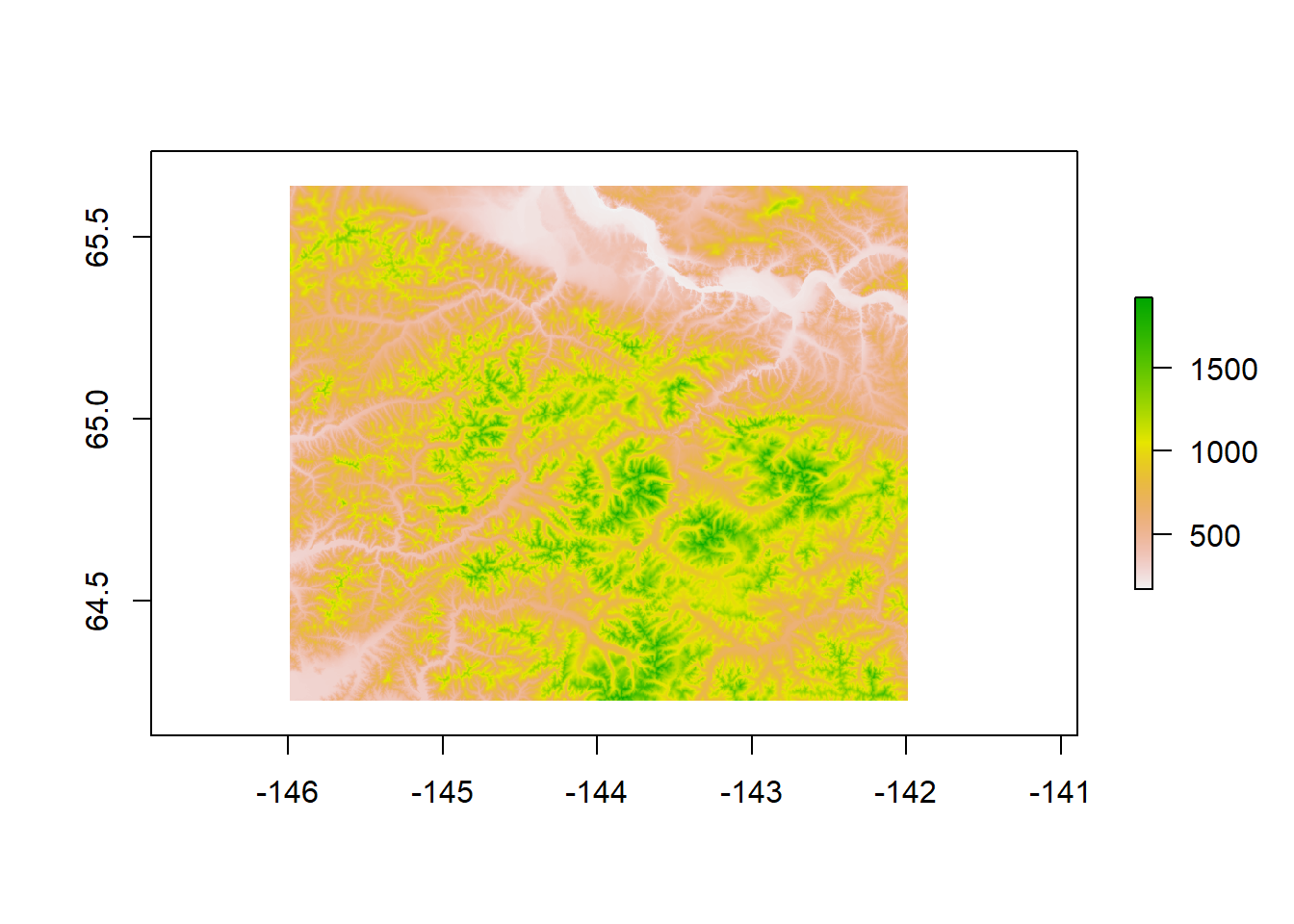

elevation <- raster("./_data/fmch_elev_tws.tif")
plot(elevation)

Our raster has a cell size of 100 x 100 m. In the plot, We can clearly see the mountains and drainages, especially the Yukon River to the north.

4 Re-projecting spatial data

We can compare the projections of this elevation raster with the fires, roads, and caribou:

load("./_data/caribou.utm.rda")
projection(caribou.utm)
## [1] "+proj=utm +zone=6 +ellps=WGS84 +datum=WGS84 +units=m +no_defs +towgs84=0,0,0"
projection(elevation)
## [1] "+proj=longlat +datum=WGS84 +no_defs +ellps=WGS84 +towgs84=0,0,0"
st_crs(fires)
## Coordinate Reference System:
##   EPSG: 4269
##   proj4string: "+proj=longlat +datum=NAD83 +no_defs"
st_crs(roads)
## Coordinate Reference System:
##   EPSG: 4326
##   proj4string: "+proj=longlat +datum=WGS84 +no_defs"

They are all different! But we can easily reproject everything to the caribou.utm CRS, which is UTM Zone 6, and visualize everything at once.

fires.utm <- st_transform(fires, projection(caribou.utm))
roads.utm <- st_transform(roads, projection(caribou.utm))

Reproject our elevation raster to UTM Zone 6 with a 100 m resolution. Without specifying the resolution, our the new cells may not be square because we’re reprojecting from decimal degrees to UTM (Warning: potentially very slow step!).

elevation.utm <- projectRaster(elevation, crs = "+proj=utm +zone=6 +ellps=WGS84 +datum=WGS84 +units=m +no_defs", res=100)
res(elevation.utm)
## [1] 100 100

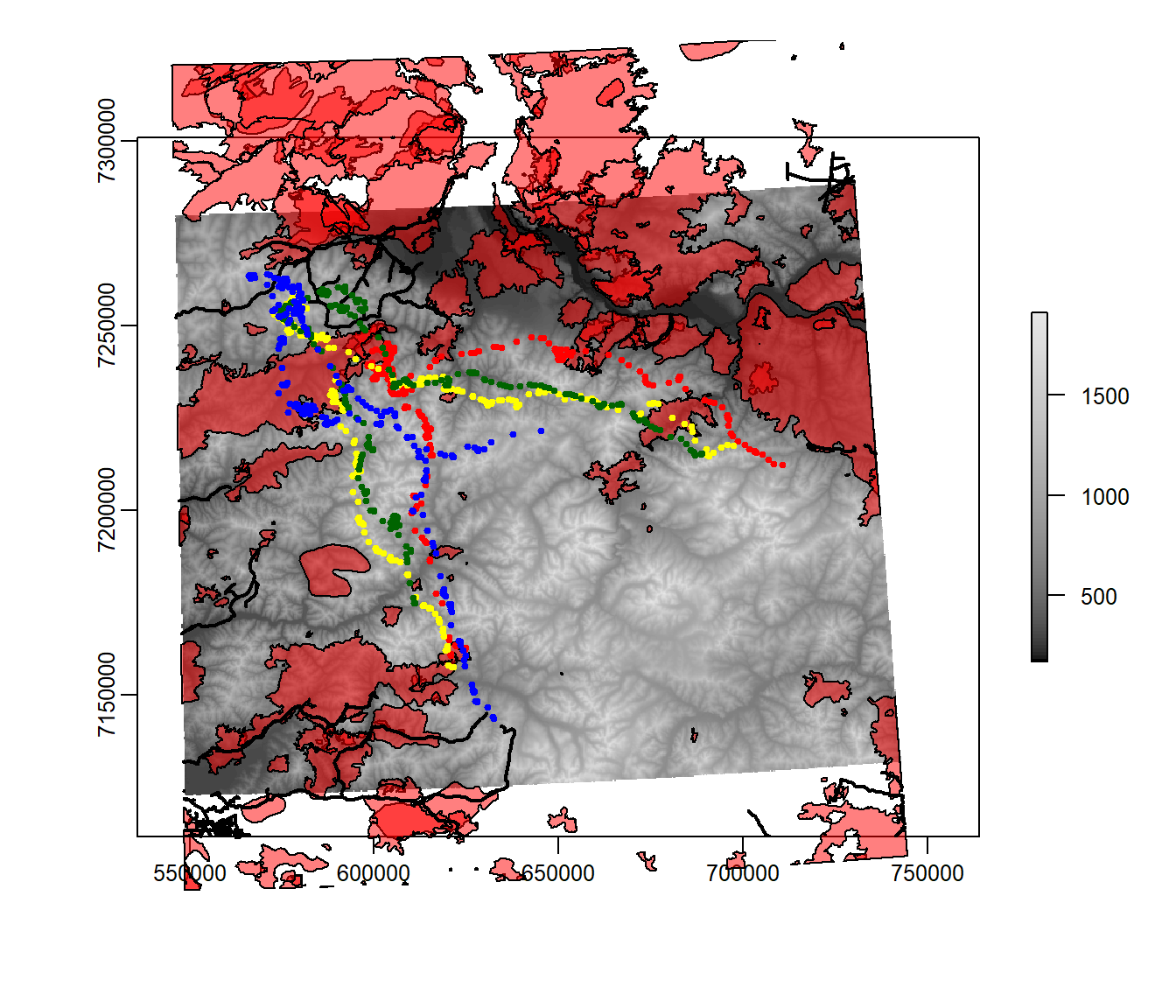

And then plot it all!

plot(elevation.utm, col = grey.colors(100, start = 0))
plot(fires.utm, col = alpha(("red"), 0.5), add = TRUE)
plot(roads.utm, col = "black", add = TRUE, lwd=2)
points(caribou.utm, pch = 19, cex = 0.5, add= TRUE, col=c("red","yellow","darkgreen","blue"))

This is certainly not a work of art (I beg to differ! - EG), but it allows us to see everything together on one map.

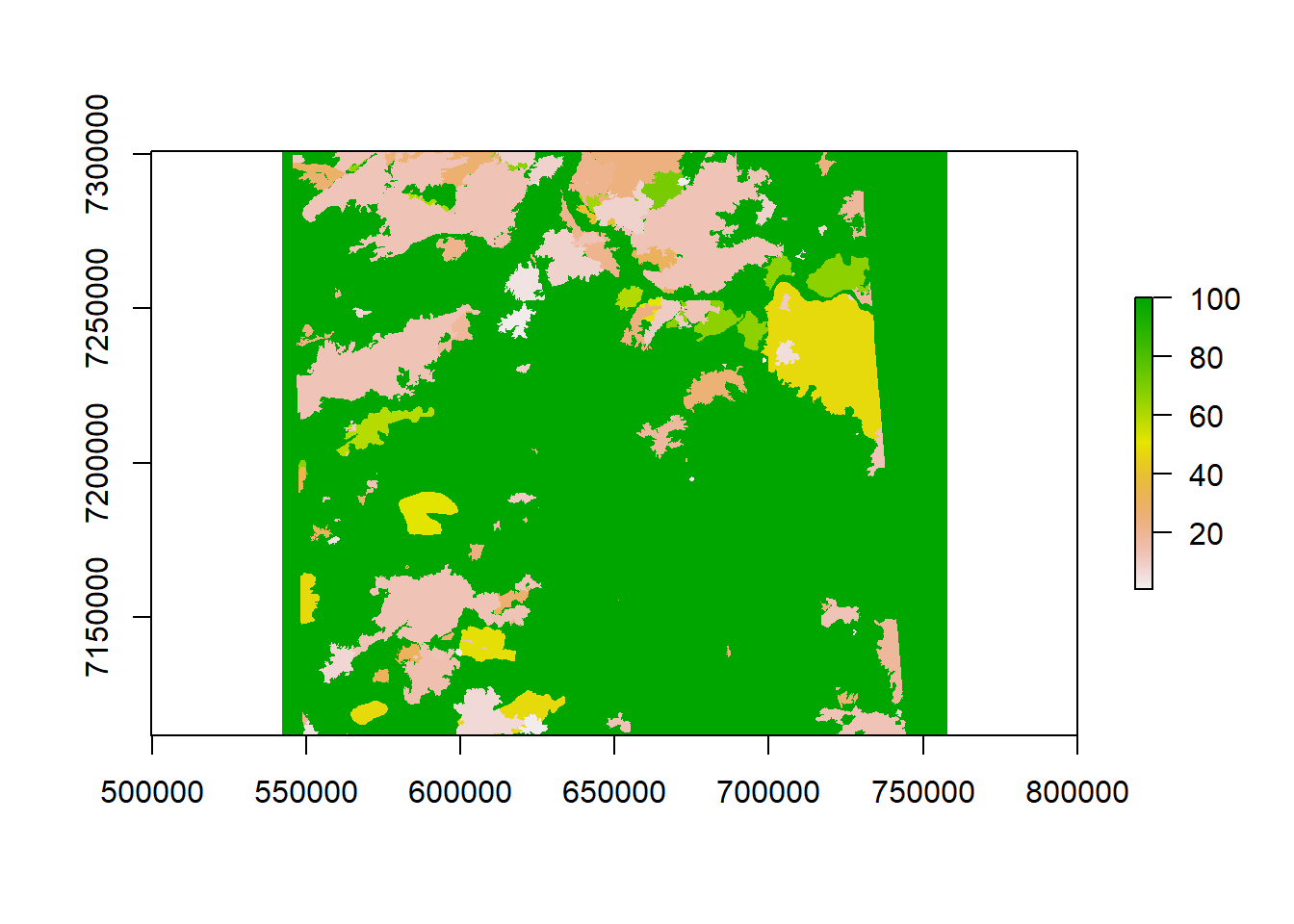

5 Creating time-since-fire

We are interested in the time since last fire. In the fires dataset, there’s are fields for DiscDate and OutDate. Since lots of the fires burned for months, we are more interested in the OutDate field. The first thing to do is convert these values to dates, because they’re currently factors. We can use lubridate here.

fires.utm$startDate <- lubridate::ymd(fires.utm$DiscDate)
fires.utm$endDate <- lubridate::ymd(fires.utm$OutDate)
sum(is.na(fires.utm$endDate))
## [1] 9

Unfortunately, 9 of the 200 fires have ‘NA’ values for “outdate”. For those records, we will just have to use the discovery date for the fire because we don’t actually know when it went out.

This command, using the pmax function, will remove NAs and give us what we want.

fires.utm$fireDate <- pmax(fires.utm$startDate, fires.utm$endDate, na.rm = TRUE)

Because all of our locations are from August and September 2017, we can find the years since fire by calculating the time difference, in years, between August 2017 and the fire date.

fires.utm$tsf <- as.numeric(difftime(lubridate::ymd("2017-08-10"), fires.utm$fireDate)/365.25)

6 Rasterizing shapefiles

Unfortunately, the sf package doesn’t play nicely with rasters yet, so we’ll have to convert those to sp objects before rasterizing. One required (and annoying) step is to drop the “z” dimension field that the sf package uses but sp doesn’t understand.

roads.utm <- st_zm(roads.utm)
fires.utm <- st_zm(fires.utm)
roads.sp <- as(roads.utm, "Spatial")
fires.sp <- as(fires.utm, "Spatial")

Create an empty raster and set extent to projection and resolution to that of the elevation.utm layer.

empty.fire.raster <- raster()
extent(empty.fire.raster) <- extent(elevation.utm)
projection(empty.fire.raster) <- projection(elevation.utm)
res(empty.fire.raster) <- 100

As we mentioned earlier, some of the fires overlap. We want each cell to have the minimum, or most recent fire, so we’ll specify fun=min here within the rasterize function. This might take some time:

fire.raster <- rasterize(fires.sp, empty.fire.raster, field="tsf", fun=min)

For this exercise, we’re just going to assign areas that haven’t burned since 1940 (which is the beginning of the fire dataset) to have a time since fire of 100 years, because we don’t want to leave them as NA. So we’ll assign the NAs in the raster to 100.

fire.raster[is.na(fire.raster[])] <- 100
plot(fire.raster)

Now we just need to rasterize the roads.sp layer and create a raster of distance to roads. We can create another empty raster and fill it with NAs, which the distance function prefers. The last line below takes a while.

empty.roads.raster <- raster()
extent(empty.roads.raster) <- extent(elevation.utm)
projection(empty.roads.raster) <- projection(elevation.utm)
res(empty.roads.raster) <- 100
empty.roads.raster[] <- NA
roads.raster <- rasterize(roads.sp, empty.roads.raster, 1)

This step takes far too long, so please don’t run it. We have a file already made for you.

dist.roads <- distance(roads.raster)
save(dist.roads, file= "./_data/dist.roads.rda")

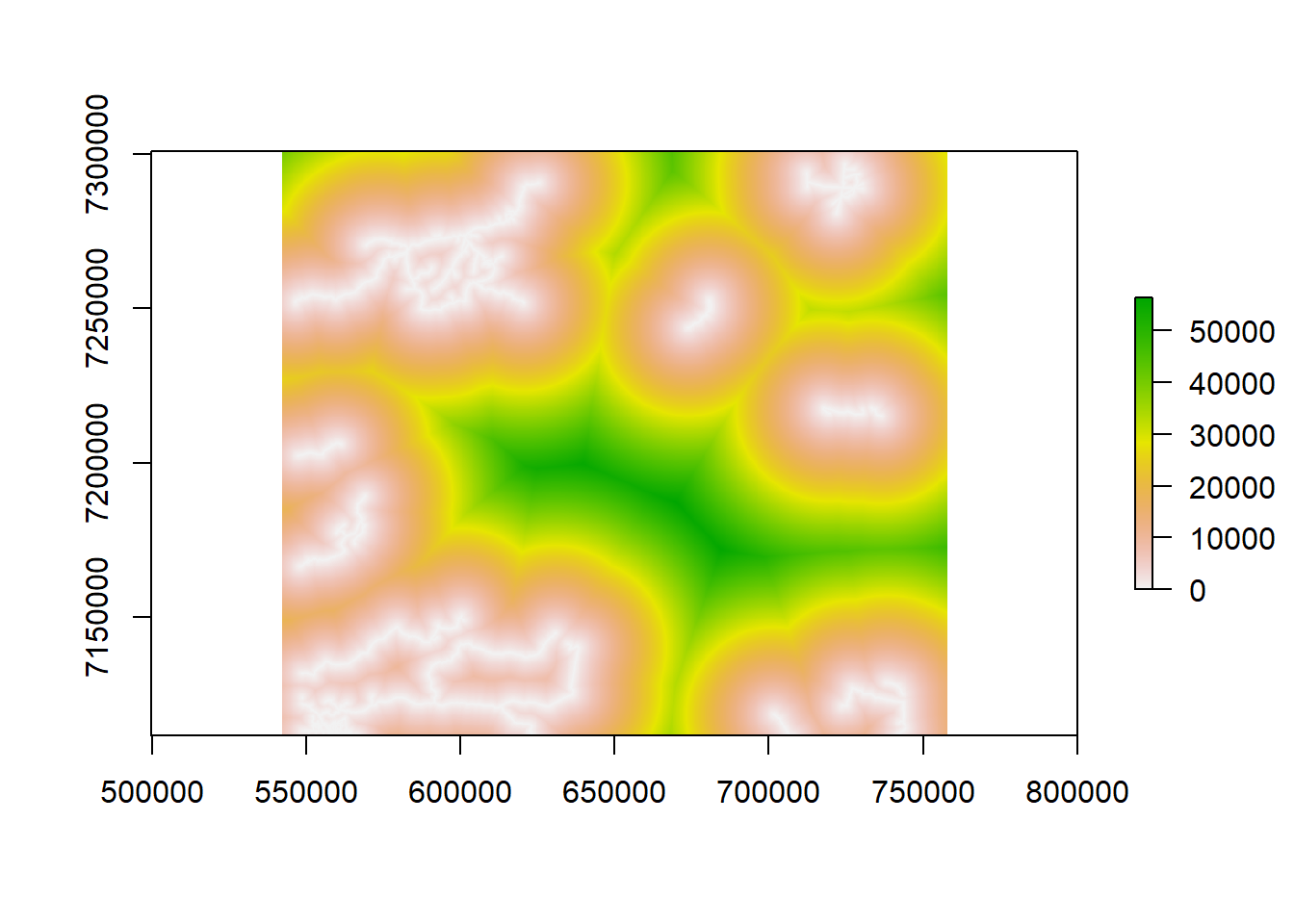

Here’s the file:

load("./_data/dist.roads.rda")
plot(dist.roads)

6.1 Making a RasterStack

For some analyses, such as resource selection functions, it’s helpful to have a RasterStack - which is a bunch of rasters (of the same “extent”) stacked on top of each other. Since all our rasters now have the same extent and projection, this is easy to do. We’ll rename the raster layers while we’re at it.

fmch.habitat <- stack(elevation.utm, fire.raster, dist.roads)
names(fmch.habitat) <- c("elevation", "time.since.fire", "dist.roads")
plot(fmch.habitat, main=c("Elevation (m)", "Time since fire (years)", "Distance to road (m)"))

7 Saving all the spatial data

For efficiency (and to save the need to replicate a lot of code), you can save all of the correctly transformed habitat covariates in a single file which will be easy to open as needed.

save(fmch.habitat, file = "./_data/FMCH.habitat.rda")
