Fourier Deconvolution

[Applications]   [Matlab/Octave]   [Self deconvolution]  [Excess noise reduction by denominator addition]   [Multiple sequential deconvolution] [Segmented deconvolution]  [convdeconv function]   [Live Script]  [Interactive deconvolution in iSignal]

Fourier deconvolution is the converse of Fourier convolution in the sense that division is the converse of multiplication. If you know that m times x equals n, where m and n are known but x is unknown, then x equals n divided by m. Conversely if you know that m convoluted with x equals n, where m and n are known but x is unknown, then x equals m deconvoluted from n.

In practice, the deconvolution of one signal from another is usually performed by point-by-point division of the two signals in the Fourier domain, that is, dividing the Fourier transforms of the two signals point-by-point and then inverse-transforming the result. Fourier transforms are usually expressed in terms of complex numbers, with real and imaginary parts representing the sine and cosine parts. If the Fourier transform of the first signal is a + ib, and the Fourier transform of the second signal is c + id, then the ratio of the two Fourier transforms is

by the rules for the division of complex numbers. Many computer languages will perform this operation automatically when the two quantities divided are complex.

Note: The word "deconvolution" can have two meanings, which can lead to confusion. The Oxford dictionary defines it as "A process of resolving something into its constituent elements or removing complication in order to clarify it", which in one sense applies to Fourier deconvolution. But the same word is also sometimes used for the process of resolving or decomposing a set of overlapping peaks into their separate additive components by the technique of iterative least-squares curve fitting of a proposed peak model to the data set. However, that process is actually conceptually distinct from Fourier deconvolution, because in Fourier deconvolution, the underlying peak shape is unknown but the broadening function is assumed to be known; whereas in iterative least-squares curve fitting it's just the reverse: the peak shape must be known but the width of the broadening process, which determines the width and shape of the peaks in the recorded data, is unknown. Thus the term "spectral deconvolution" is ambiguous: it might mean the Fourier deconvolution of a response function from a spectrum, or it might mean the decomposing of a spectrum into its separate additive peak components. These are different processes; don't get them confused.

The practical significance of Fourier deconvolution in signal processing is that it can be used as a computational way to reverse the result of a convolution occurring in the physical domain, for example, to reverse the signal distortion effect of an electrical filter or of the finite resolution of a spectrometer. In some cases the physical convolution can be measured experimentally by applying a single spike impulse ("delta") function to the input of the system, then that data used as a deconvolution vector. Deconvolution can also be used to determine the form of a convolution operation that has been previously applied to a signal, by deconvoluting the original and the convoluted signals. These two types of application of Fourier deconvolution are shown in the two figures below.

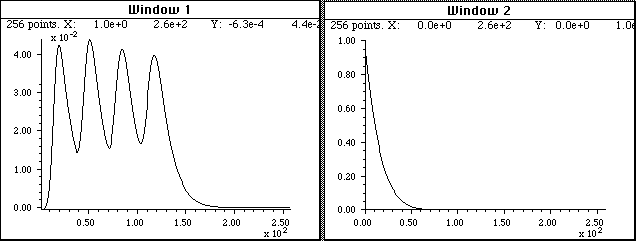

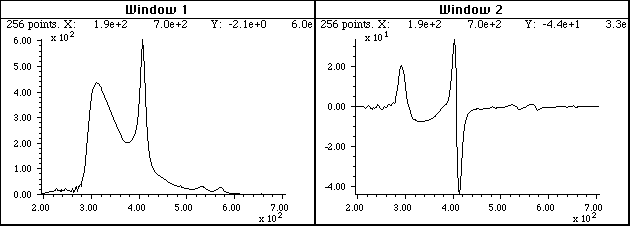

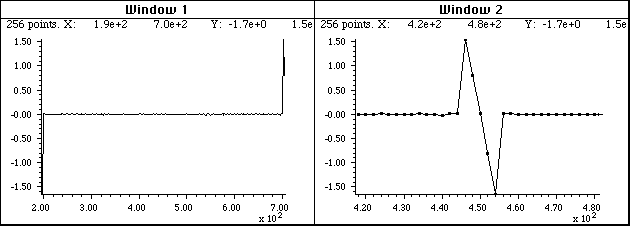

Fourier deconvolution is used here to remove the distorting influence of an exponential tailing response function from a recorded signal (Window 1, top left) that is the result of an unavoidable RC low-pass filter action in the electronics. The response function (Window 2, top right) must be known and is usually either calculated on the basis of some theoretical model or is measured experimentally as the output signal produced by applying an impulse (delta) function to the input of the system. The response function, with its maximum at x=0, is deconvoluted from the original signal . The result (bottom, center) shows a closer approximation to the real shape of the peaks; however, the signal-to-noise ratio is unavoidably degraded compared to the recorded signal, because the Fourier deconvolution operation is simply recovering the original signal before the low-pass filtering, noise and all. (Matlab/Octave script)

Note that this process has an effect that is visually similar to resolution enhancement, although the later is done without specific knowledge of the broadening function that caused the peaks to overlap.

A different application of Fourier deconvolution is to reveal the nature of an unknown data transformation function that has been applied to a data set by the measurement instrument itself. In this example, the figure in the top left is a uv-visible absorption spectrum recorded from a commercial photodiode array spectrometer (X-axis: nanometers; Y-axis: milliabsorbance). The figure in the top right is the first derivative of this spectrum produced by an (unknown) algorithm in the software supplied with the spectrometer. The objective here is to understand the nature of the differentiation/smoothing algorithm that the instrument's software uses. The signal in the bottom left is the result of deconvoluting the derivative spectrum (top right) from the original spectrum (top left). This therefore must be the convolution function used by the differentiation algorithm in the spectrometer's software. Rotating and expanding it on the x-axis makes the function easier to see (bottom right). Expressed in terms of the smallest whole numbers, the convolution series is seen to be +2, +1, 0, -1, -2.  This simple example of "reverse engineering" would make it easier to compare results from other instruments or to duplicate these result on other equipment.

When applying Fourier deconvolution to experimental data, for example to remove the effect of a known broadening or low-pass filter operator caused by the experimental system, there are four serious problems that limit the utility of the method:

(1) the convolution occurring in the physical domain might not be accurately modeled by a mathematical convolution;

(2) the width of the convolution - for example the time constant of a low-pass filter operator or the shape and width of a spectrometer slit function - must be known, or at least adjusted by the user to get the best results;

(3) a serious signal-to-noise degradation commonly occurs; any noise added to the signal by the system after the convolution by the broadening or low-pass filter operator will be greatly amplified when the Fourier transform of the signal is divided by the Fourier transform of the broadening operator, because the high frequency components of the broadening operator (the denominator in the division of the Fourier transforms) are typically very small, with some individual components often of the order of 10-12 or 10-15, resulting a huge amplification of those particular frequencies in the resulting deconvoluted signal, which is called "ringing". (See the Matlab/Octave code example at the bottom of this page). The problem can be reduced either by low-pass filtering (smoothing). Smoothing or filtering reduces the amplitude of the highest-frequency components.

You can see the amplification of high frequency noise happening in the example in the first example above. On the other hand, this effect is not observed in the second example, because in that case the noise was present in the original signal, before the convolution performed by the spectrometer's derivative algorithm. The high frequency components of the denominator in the division of the Fourier transforms are typically much larger than in the previous example, avoiding the noise amplification and divide-by-zero errors, and the only post-convolution noise comes from numerical round-off errors in the math computations performed by the derivative and smoothing operation, which is always much smaller than the noise in the original experimental signal.

In many cases, the width of the physical convolution is not known exactly, so the deconvolution must be adjusted empirically to yield the best results. Similarly, the width of the final smooth operation must also be adjusted for best results. The result will seldom be perfect, especially if the original signal is noisy, but it is often a better approximation to the real underlying signal than the recorded data without deconvolution.

As a method for peak sharpening, deconvolution can be compared to the derivative peak sharpening method described earlier or to the power method, in which the raw signal is simply raised to some positive power n.

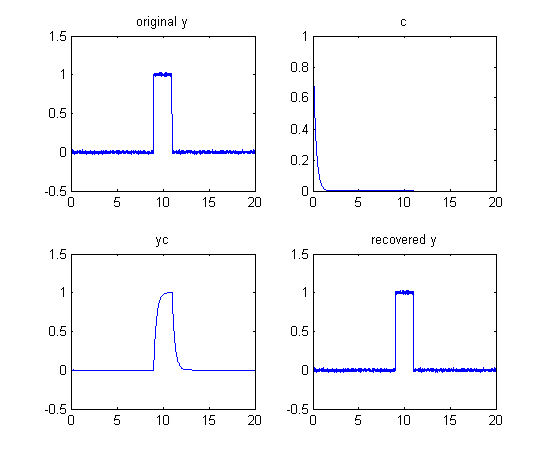

Matlab and Octave have a built-in function for Fourier deconvolution: deconv. An example of its application is shown below: the vector yc (line 6) represents a noisy rectangular pulse (y) convoluted with a transfer function c before being measured. In line 7, c is deconvoluted from yc, in an attempt to recover the original y. This requires that the transfer function c be known. The rectangular signal pulse is recovered in the lower right (ydc), complete with the noise that was present in the original signal.  The Fourier deconvolution reverses not only the signal-distorting effect of the convolution by the exponential function, but also its low-pass noise-filtering effect. As explained above, there is significant amplification of any noise that is added after the convolution by the transfer function (line 5). This script demonstrates that there is a big difference between noise added before the convolution (line 3), which is recovered unmodified by the Fourier deconvolution along with the signal, and noise added after the convolution (line 6), which is amplified compared to that in the original signal. Execution time: 0.03 seconds in Matlab; 0.3 seconds in Octave.  Download this script.

x=0:.01:20;
y=zeros(size(x));

% Create a rectangular function y, 200 points wide
 y(900:1100)=1;

% Noise added before the convolution
y=y+.01.*randn(size(y));

% exponential trailing convolution function, c
c=exp(-(1:length(y))./30);

% Create exponential trailing rectangular
% function, yc

yc=conv(y,c,'full')./sum(c);

% Optional noise added after the convolution
% yc=yc+.01.*randn(size(yc));

% Attempt to recover y by deconvoluting c from yc
 ydc=deconv(yc,c).*sum(c);
% The sum(c2) is included simply to scale the
% amplitude of the result to match the original y.

% Plot all the steps in separate subplots
subplot(2,2,1); plot(x,y); title('original y');
subplot(2,2,2); plot(x,c);title('c'); subplot(2,2,3);
plot(x,yc(1:2001)); title('yc'); subplot(2,2,4);
plot(x,ydc);title('recovered y')

Alternatively, you could perform the Fourier deconvolution yourself without using the built-in Matlab/Octave "deconv" function by dividing the Fourier transforms of yc and c using the built-in Matlab/Octave "fft.m" function and inverse transform the result with the built-in Matlab/Octave "ifft.m" function. Note that c must be zero-filled to match the size of yc. The results are essentially the same (except for the numerical floating point precision of the computer, which is usually negligible), and it's actually ten times faster than using the deconv function:

ydc=ifft(fft(yc)./fft([c zeros(1,2000)])).*sum(c);

Click here for a simple explicit example of Fourier convolution and deconvolution, for a small 9-element vector, with the vectors printed out at each stage.

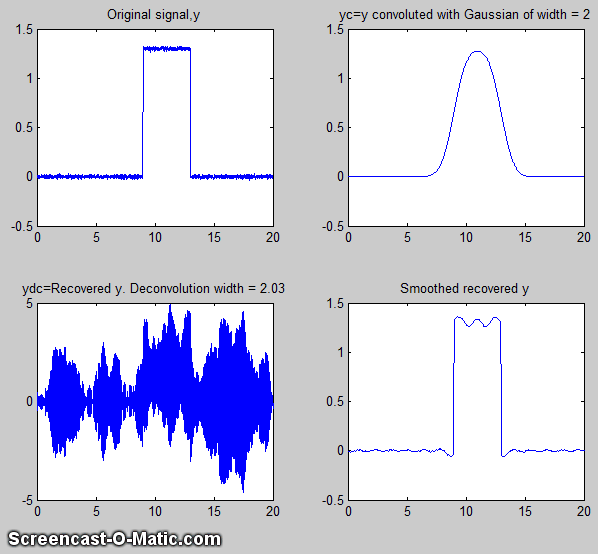

The script DeconvDemo3.m is similar to the above, except that it demonstrates Gaussian Fourier convolution and deconvolution of the same rectangular pulse, utilizing the fft/ifft formulation just described. The animated screen graphic is shown on the left, demonstrating the effect of changing the deconvolution width. The raw deconvoluted signal in this example (bottom left quadrant) is extremely noisy, but that noise is mostly "blue" (high frequency) noise that is easily reduced by a little smoothing. As you can see in both of the animated examples here, deconvolution works best when the deconvolution width exactly matches the width of the convolution that the observed signal has been subject to; the further off you are, the worse will be the wiggles and other signal artifacts. In practice, you have to try several different deconvolution widths to find the one that results in the smallest wiggles, which of course becomes harder to see if the signal is very noisy.

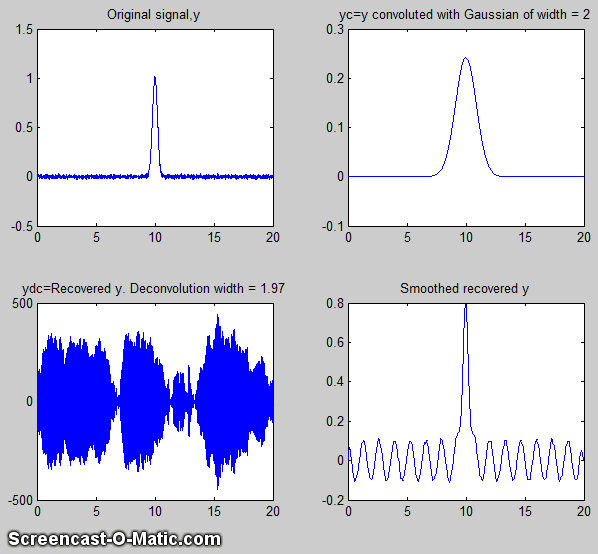

DeconvDemo4.m (on the right) shows a Gaussian deconvoluted from a Gaussian function and an attempt to recover the original peak width. Typically this would be applied to a signal containing multiple overlapping peaks, in an attempt to sharpen the peaks to improve the resolution. Note that in this example the deconvolution width must be within 1% of the deconvolution width. In general, the wider the physical convolution width relative to the signal, the more accurately the deconvolution width must be matched the physical convolution width.

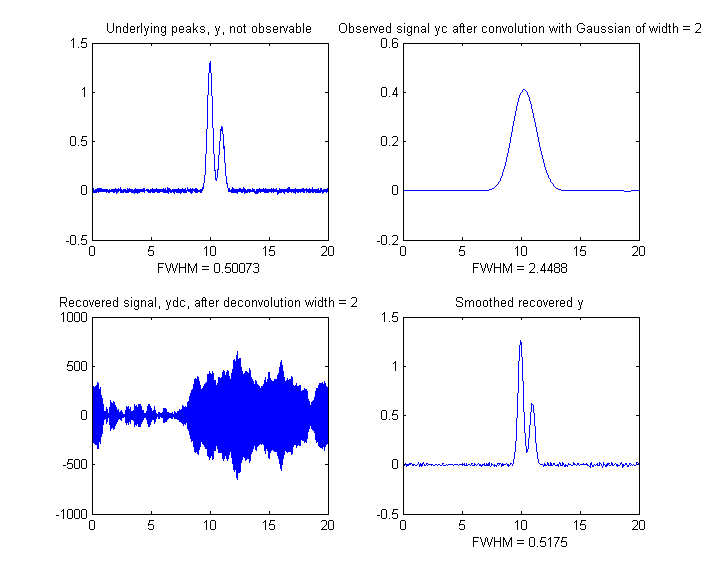

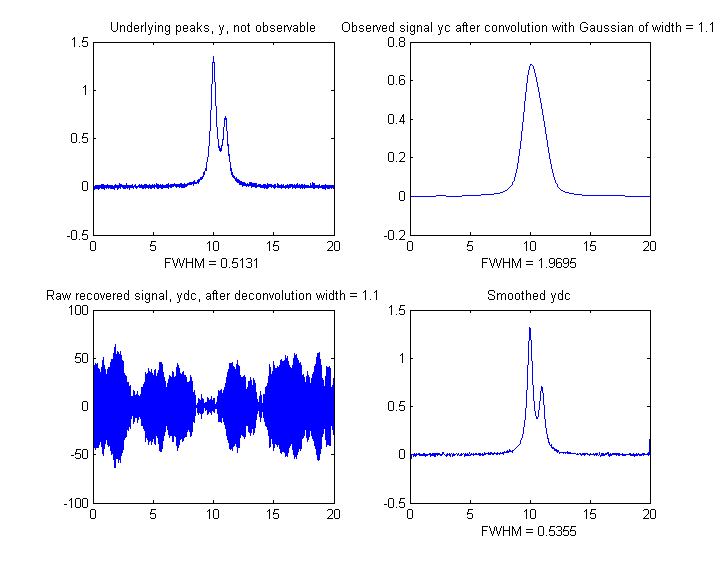

 DeconvDemo5.m (shown on the left) shows an example with two closely-spaced underlying peaks of equal width that are completely unresolved in the observed signal, but are recovered with their 2:1 height ratio intact in the deconvoluted and smoothed result. DeconvDemo6.m is that same except that the underlying peaks are Lorentzian. This image shows the widths of the peaks (as full width at half maximum) in the captions, showing that the width of the deconvoluted peaks (lower right quadrant) are actually slightly larger than in the (unobserved) underlying peaks (upper left quadrant) either because of imperfect deconvolution or because of the broadening effects of the smoothing needed to reduce the high frequency noise. (Note that all these scripts require functions than can be downloaded from http://tinyurl.com/cey8rwh).

In the example, shown below on the right, the underlying signal (uyy) is a Gaussian, but in the observed signal (yy) the peak is broadened exponentially resulting in a shifted, shorter, and wider peak, and then a little constant white noise is added after the broadening convolution (cc). Assuming that the exponential broadening time constant ('tc') is known, or can be guessed or measured, the Fourier deconvolution of cc from yy successfully removes the broadening (yydc), and restores the original height, position, and width of the underlying Gaussian, but at the expense of considerable noise increase. However, the noise remaining in the deconvoluted signal is "blue" (high-frequency weighted) and so is easily reduced by smoothing and has less effect on least-square fits than does white noise. (For a greater challenge, try more noise in line 6 or a bad guess of time constant ('tc') in line 7). To plot the recovered signal overlaid with underlying signal: plot(xx,uyy,xx,yydc). To plot the observed signal overlaid with with underlying signal:

plot(xx,uyy,xx,yy)

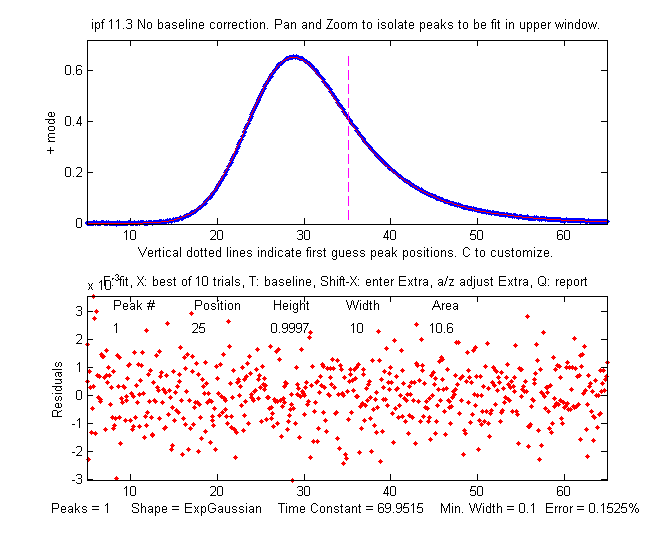

To curve fit the recovered signal to a Gaussian to determine peak parameters: [FitResults,FitError]=peakfit([xx;yydc],26,42,1,1,0,10), which yields excellent values for the original peak positions, heights, and widths. You can demonstrate to yourself that with ten times the previous noise level (Noise=.01 in line 6), the values of peak parameters determined by curve fitting are still quite good, and even with 100x more noise (Noise=.1 in line 6) the peak parameters are more accurate than you might expect for that amount of noise (because that noise is blue). Remember, there is no need to smooth the results of the Fourier deconvolution before curve fitting, as seen previously.

% Deconvolution demo 2
xx=5:.1:65;
% Underlying signal with a single peak (Gaussian)
% of unknown height, position, and width.

uyy=gaussian(xx,25,10);

% Compute observed signal yy, using the expgaussian function
% with time constant tc, adding noise added AFTER the
% broadening convolution (ExpG)

Noise=.001;  % <<<< Change the noise here
tc=70; % <<<< Change the exponential time constant here
yy=expgaussian(xx,25,10,-tc)'+Noise.*randn(size(xx));

% Guess, or use prior knowledge, or curve fit one peak, to
% determine time constant (tc), then compute transfer function cc

cc=exp(-(1:length(yy))./tc);

% Use "deconv" to recover original signal uyy by deconvoluting
% cc from yy. "Zero-pad" the observed signal as shown here.

yydc=deconv([yy zeros(1,length(yy)-1)],cc).*sum(cc);

% Plot the signals and results in 4 subplots
subplot(2,2,1);
plot(xx,uyy);title('Underlying 4 Gaussian signal, uyy');
subplot(2,2,2);
plot(xx,cc);title('Exponential transfer function, cc')
subplot(2,2,3);
plot(xx,yy);title('observed broadened and noisy signal, yy');
subplot(2,2,4);
plot(xx,yydc);title('After deconvoluting transfer function, yydc')

  An alternative to the above deconvolution approach is to use iterative curve fitting (which is covered in a further section) to fit the observed signal directly with an exponentially broadened Gaussian (shape number 5):

>> [FitResults,FitError]=peakfit([xx;yy], 26, 50, 1, 5, 70, 10)

Both methods give good values of the peak parameters, but the Fourier deconvolution method is faster, because fitting the deconvoluted signal with a simple Gaussian model is faster than iteratively curve fitting the observed signal with the more complicated exponentially broadened Gaussian model. If the exponential factor "tc" is not known, it can be determined by iterative curve fitting, manually adjusting the exponential factor ('extra') interactively to get the best fit:

>> ipf([xx;yy]);

which in this particular case gives a best fit when the exponential factor "tc" is adjusted to about 69.9 (very close the correct value of 70 in this simulation).

Alternatively, you can use peakfit.m with the unconstrained variable exponentially broadened Gaussian (shape 31), which will automatically find the best value of "tc", but in that case the best results will be obtained if you give it a rough starting guess ("start") at least within a factor of two or so of the correct values:

>>[FitResults,FitError]=
peakfit([xx;yy],0,0,1,31,70,10, [20 10 50])


FitResults = Peak# Position Height  Width  Area  tc
              1    25.006  0.99828   10    10.6  69.
GoodnessOfFit =
      0.15575      0.99998

The value of the exponential factor determined by this method is 69.8, again close to 70. However, if the signal is very noisy, there will be quite a bit of uncertainty in the value of the exponential factor so determined - for example, the value will vary a bit if slightly different regions of the signal are selected for measurement (e.g. by panning or zooming in ipf.m or by changing the center and window arguments in peakfit.m). See Appendix H: Fourier deconvolution vs curve fitting for another example with four overlapping Gaussians.


In all of the above simulations, the deconvolution method works as well as it does because the signal-to-noise ratio of the "observed signal" is quite good; the noise is not even visible on the scale presented here. In the absence of any knowledge of the width of the deconvolution function, finding the right deconvolution width depends upon experimentally minimizing the wiggles that are seen when the deconvolution width is incorrect, and a poor signal-to-noise ratio will make this much more difficult. Of course smoothing can reduce noise, especially high-frequency (blue) noise, but smoothing also slightly increases the width of peaks, which works counter to the point of deconvolution, so it must not be over used. As a rough but practical rule of thumb, if there is any easily visible noise in the observed signal, it is likely that the results of self-deconvolution, of the type shown in  DeconvDemo5.m, will be quite noisy.

Excess noise reduction by denominator addition

The most common way to control the the high-frequency noise amplification resulting from deconvolution, as described above, is low-pass filtering, either by some form of sliding average filter or by a Fourier filter. The basic limitation of such filters, unfortunately, is that they are limited in their ability to handle situations where near-zero values in the fft of the deconvolution function in the denominator result in INF, NAN, or astronomically large values in the deconvoluted signal. To appreciate this problem, consider the figures below, created by the Matlab script DenomAdditionDemo.m, which shows the application of self-deconvolution to sharpen a single isolated Gaussian peak by deconvolving a narrower Gaussian function 0.8 times the width of the original peak, using only a Fourier filter to reduce noise and ringing.

Graphical user interface, diagramDescription
              automatically generated ChartDescription automatically generated


Figure window 1 (left) shows the original peak (top left) and the remaining subplots show the sharpened peaks after smoothing the resulting signal with a Fourier filer with 5 different frequency cutoffs to reduce the ringing. The corresponding frequency spectra of those five sharpened signals are shown in figure window 2 (right), which shows two distinct frequency regions:

(a) The left-hand (low frequency) side is a smooth curved region, which are the signal components of the deconvoluted signal. The narrower the signal peak, the more gradually the curve drops off at higher frequencies.

(b) The right-hand (high frequency) end of the spectrum is dominated by the noise and ringing in the deconvoluted signal.


Observing these spectra can be a useful guide to adjusting the deconvolution width and the noise filtering. You can see that, in this particular case, the noise has caused a pronounced spike near the middle of the spectrum, which is the cause of the oscillatory ringing in the peak plots. As the cutoff frequency is decreased, the high-frequency components are reduced, as expected, but the spike still remains even at the lowest cutoff (green line), at which point the width of the deconvoluted peak has been broadened by the filter, counteracting the original intent of deconvolution.


This problem can be solved by an independent method of noise reduction introduced by Farooq Wahab and myself in 2023 (reference 96). This involves simply adding a small positive non-zero constant or distribution function to the denominator in the deconvolution process, which increases the excessively small high-frequency members in the denominator. The quantity added is small, typically or 1 to 5 percent of the amplitude of the denominator. In Matlab, the basic devolution operation is coded like so:

ydc=ifft(fft(y)./(fft(df))).*sum(df)



Here is the code for the case where the denominator addition is a constant:

D=fft(df)+DA.*max(fft(df));
ydcDA=ifft(fft(y)./D).*sum(df);



where y is the original signal, D is the denominator, df is the deconvolution function and FDA is the fractional denominator addition. The addition is scaled to the maximum value of the fft of the deconvolution function df so that the quantity added will adjust to the varying amplitudes of different experimental signals.

An alternative is to add a constant only to those members of the denominator below a specified threshold, e.g. using the "no lower than" function nlt(a,b):

 D=nlt(fftc,FDA.*0.01.*max(fftc));
ydcDA=ifft(fft(y)./D).*sum(df);



  Graphical user interface, diagramDescription
              automatically generated ChartDescription automatically generated


Figure windows 3 and 4 (above) show the effect of varying the fractional denominator addition without frequency filtering. The subplot on the top left shows the original peak and the remaining five subplots show the results of adding increasing amounts to the denominator, from zero to 0.1. The frequency spectra of those five deconvoluted signals are shown in figure window 4 (right), showing that the effect of denominator addition is to reduce the overall amplitude of the noisy right-hand half of the frequency spectrum, without changing the frequency distribution. With zero addition, the large spike near the center is seen as before, but even the smallest addition (red) eliminates it. With the maximum 10% addition (green), the noise is greatly reduced but still the deconvoluted peak is narrower (FWHM=0.7) compared to the width of the peak with only the filter applied (FWHM=0.82). Note: if you run the script DenomAdditionDemo.m, again, a different noise sample will be generated each time.

The frequency spectra in the above two figures show that low-pass filtering and denominator addition are orthogonal operations in the frequency domain. Filtering operates "horizontally" along the x axis, whereas denominator addition operates "vertically" along the y axis and reduces the amplitude of the all the frequencies that are the most highly amplified by deconvolution. Both methods reduce noise, but they work in different ways and can be used together.

Reference 96 explores this method in greater detail, including using distributions rather than a constant addition and showing the results of applications to experimental signals.

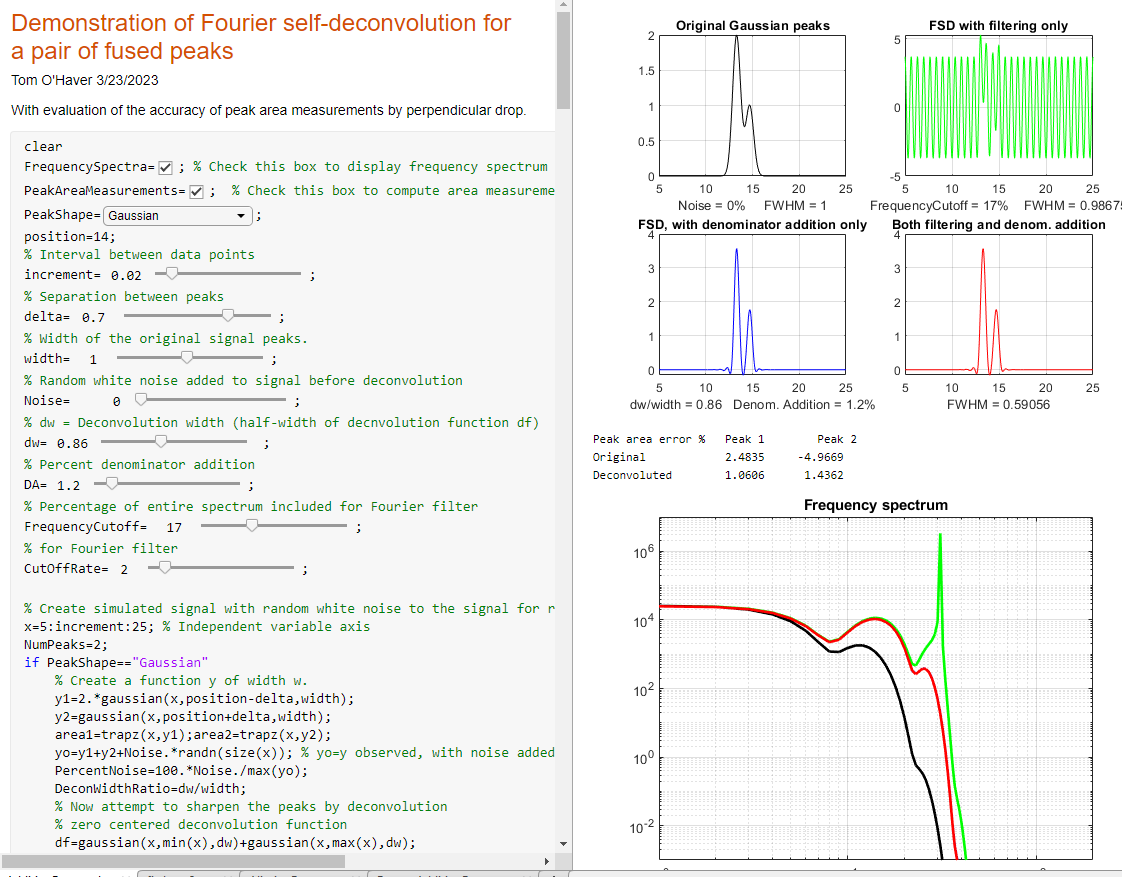

An excellent way to explore the interplay between the values for deconvolution width, filter cutoff frequency and denominator addition is to use the Matlab Live Script DenomAdditionDemo.mlx (graphic), which provides sliders and a drop down menu for adjusting the parameters interactively. Live Scripts were available starting in MATLAB R2016b.

Deconvolution for peak area measurements. Measuring the areas under peaks is a common requirement in quantitative analysis, but it works only if there is sufficient separation between peaks. Because deconvolution sharpens peaks but does not change the area under them, it can be used to improve the measurement of the areas of overlapping peaks. In the Matlab script GLSDPerpDropDemo16.m, the areas of a group of three partially overlapping peaks is measured, by the perpendicular drop method, before and after peak sharpening by Fourier self-deconvolution. The measurements are repeated with random peak height, to test how the peak overlap interferes with precise area measurement. After sixteen trials with randomized peak heights, the true peak area are plotted against the measured areas, and the R2 values for each case are compared before and after deconvolution. The results are summarized on this PDF file. Conclusion: in every case, from the "easiest" to the most challenging, deconvolution yields the best results.


Segmented deconvolution. If either the peak widths or the tailing varies substantially across the signal, you can use a segmented deconvolution, which allows the deconvolution vector to adapt to the local conditions in different signal regions. SegExpDeconv(x,y,tc) divides x,y into a number of equal-length segments defined by the length of the vector 'tc', then each segment is deconvoluted with an exponential decay of the form exp(-x./t) where t is corresponding element of the vector tc. Any number and sequence of t values can be used. SegExpDeconvPlot.m is the same except that it plots the original and deconvoluted signals and shows the divisions between the segments by vertical magenta lines to make it easier to adjust the number and values of the segments. SegGaussDeconv.m and SegGaussDeconvPlot.m are the same except that they perform a symmetrical (zero-centered) Gaussian deconvolution. SegDoubleExpDeconv.m and SegDoubleExpDeconvPlot.m perform a symmetrical (zero-centered)exponential deconvolution. If the peak widths increase regularly across the signal, you can calculate a reasonable initial value for the vector 'tc' by giving only the number of segments (NumSegments) , the first value, "startt", and the last value, "endt":

tstep=(endt-startt)/NumSegments;

tc=startt:tstep:endt;

Multiple sequential deconvolution.

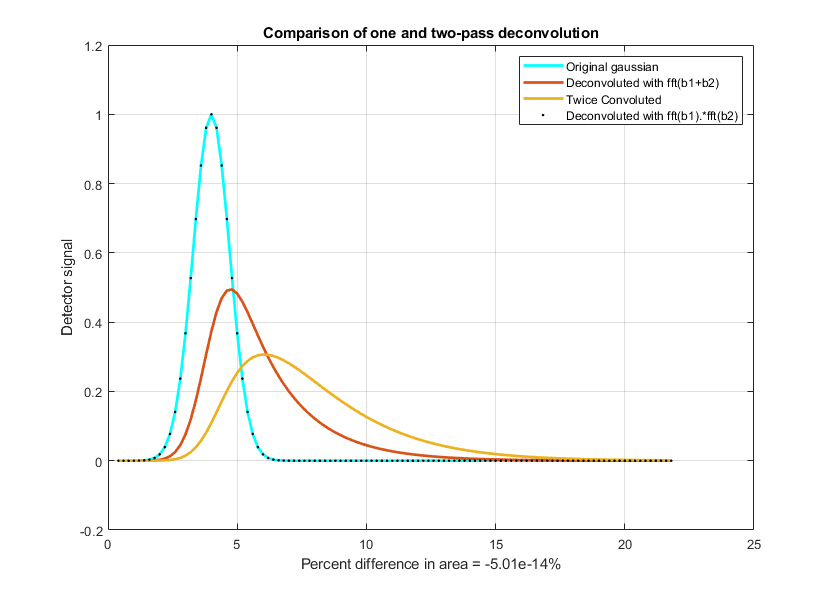

In cases where the signal may have been subject to two or more sequential convolutions, as described in the previous section, the reversal of that effect requires multiple sequential deconvolutions and cannot be undone accurately by a single larger deconvolution. As a simple example of that situation, the Matlab/Octave script DeconvoluteTwiceBroadenedPeak.m, demonstrates the attempted deconvolution of two exponential broadenings by the vectors of b1 and b2, that have been applied to an originally Gaussian peak. In the resulting graphic on the left, the blue curve is the original underlying Gaussian, the yellow curve is the observed signal after the original has been twice exponentially broadened, and the red curve is an attempt to deconvolute a single wider exponential function with a larger time constant. That attempt is obviously unsuccessful; in fact, no single simple deconvolution can remove the effects of two or more convolutions. The black dotted line is the result of performing a deconvolution with the product fft(b1)*fft(b2), which is the Fourier transform of the convolution of b1 and b2. That attempt is successful and overlays the original Gaussian, in blue, exactly.


Live script for self-deconvolution

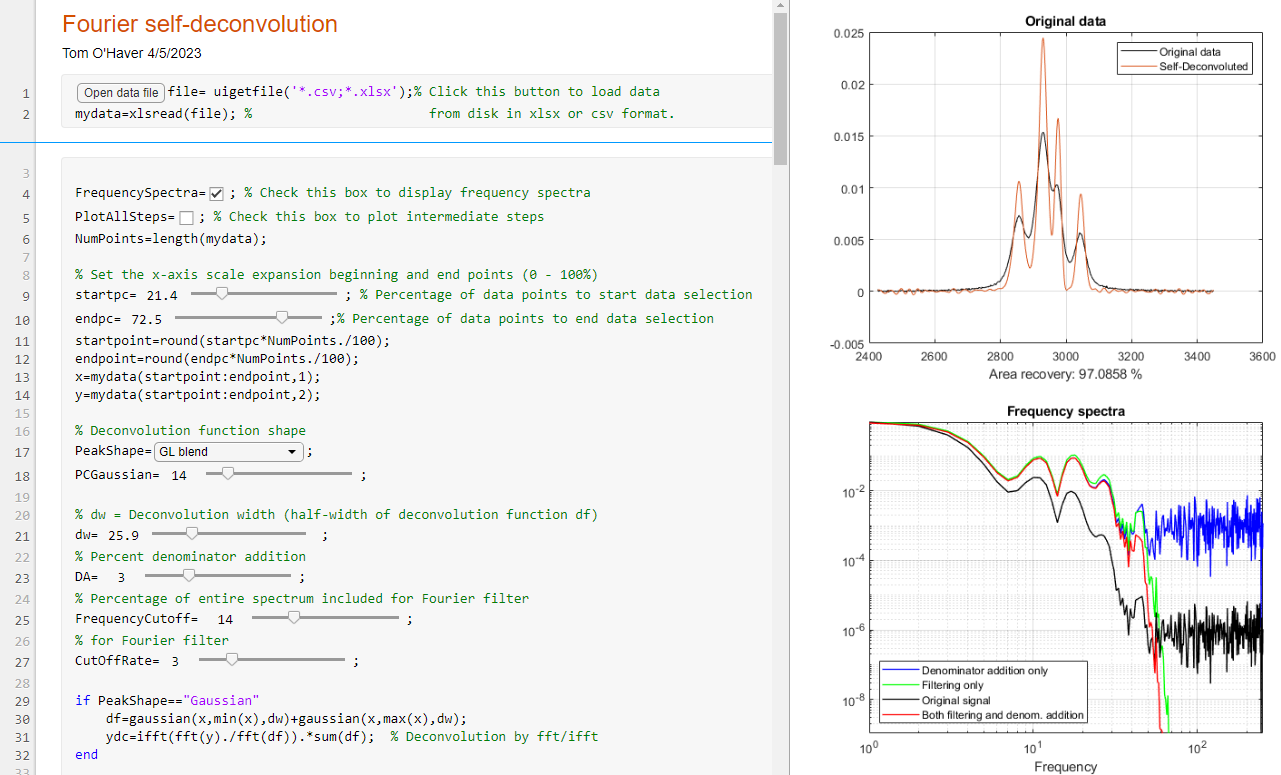

DeconvoluteData.mlx can perform Fourier self-deconvolution on you own data stored in disk. Clicking the Open data file button in line 1 opens a file browser, allowing you to navigate to your data file in .csv or .xlsx format. (The script assumes that your x,y data are in the first two columns; you can change that in lines 13 and 14). In the case shown here, the data file is a portion of the IR spectrum of Heptene, 'HepteneTestData.csv', shown as the 'file' variable in the workspace. The startpc and endpc sliders in lines 9 and 10 allow you to select which portion of the data range to process, from 0% to 100% of the total range of the data file.

The PeakShape drop-down menu in line 17 selects the convolution function shape (in this case, a Gaussian-Lorentzian blend) and for that shape the PCGaussian slider in the next line allows selection of the percent Gaussian. The dw slider in line 21 controls the deconvolution half-width, the DA slider in line 23 controls the percent denominator addition.  Smoothing, by Fourier filtering, is controlled by the FrequencyCutoff and CutOffRate in lines 25 and 27. All variables are accessible in the Matlab workspace; the final signal is 'syDA'.

Click the FrequencySpectra check box in line 4 to view the frequency spectra. Click the PlotAllSteps check box in line 5 to view all the steps leading up to the the final result. To view the figures to the right as shown below, right-click on the right-hand panel and select "Disable synchronous scrolling".


Self-deconvolution sharpening of the IR spectrum of Heptene, 'HepteneTestData.csv'

Deconvolution in iSignal

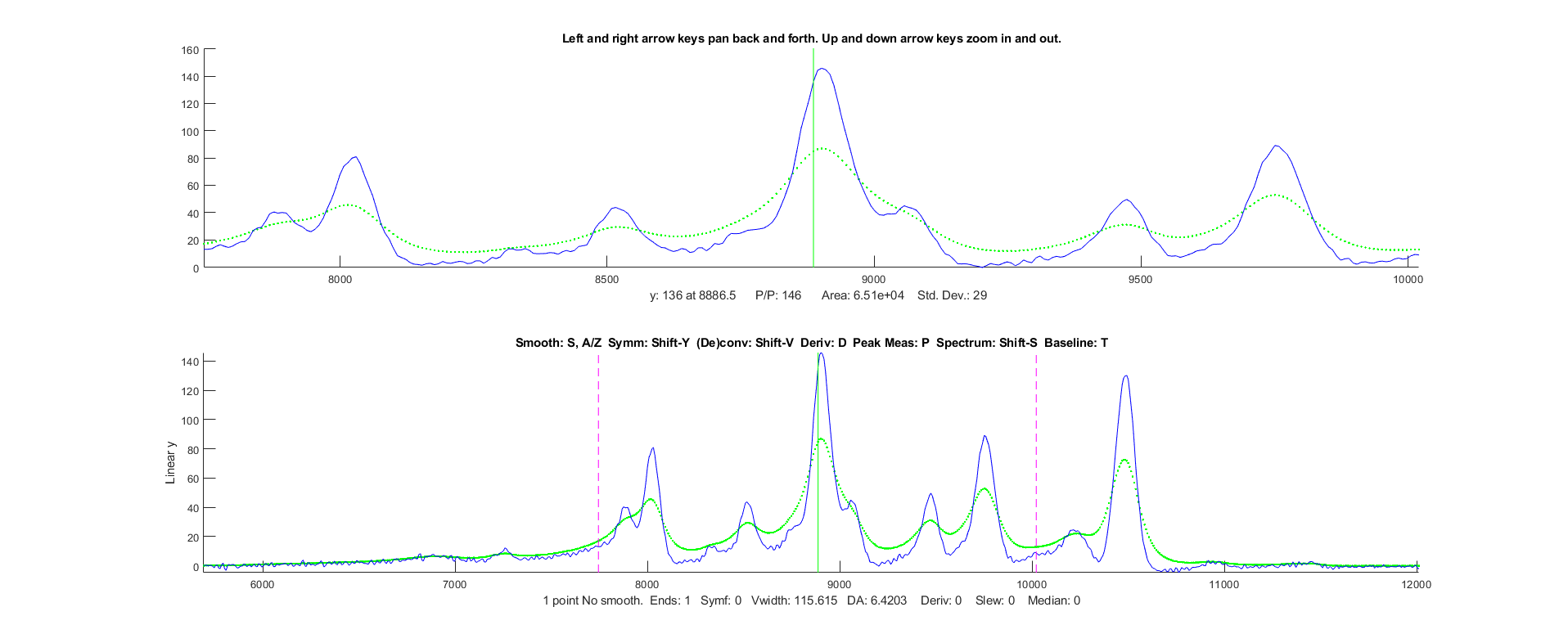

In iSignal version 8.3, and its Octave version, the downloadable interactive multipurpose signal processing Matlab functionyou can press Shift-V to display the menu of Fourier convolution and deconvolution operations that allow you to convolute or to deconvolute a Gaussian, Lorentzian or exponential function. It will ask you for the initial width or time constant of the deconvolution function (Vwidth, in X units), then you can use the 3 and 4 keys to decrease or increase the width by 10% (or Shift-3 and Shift-4 to adjust by 1%).Here's an application to a real experimental signal. The denominator addition (to suppress ringing and noise) is controlled by the 5 and 6 keys.

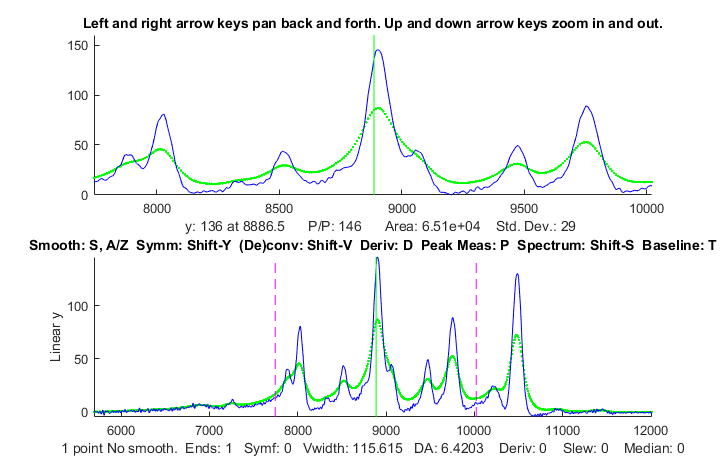

In this example, the original signal is shown as the dotted green line and the results of deconvoluting it with a Lorentzian deconvolution function is shown as the blue line. The deconvolution width was adjusted as large as possible without causing significant negative dips between the peaks, which for many types of experimental data, would be non-physical. (Recall that the mathematics of the deconvolution operation is structured so that the area under the peaks remains unchanged, even though the widths are reduced and the heights are increased). Several of the peaks shown in the zoomed-in close-up in the upper panel have shoulders that are resolved into distinct peaks, allowing their peak positions to be measured more accurately. Fortunately, the amplitude of those revealed peaks is greater than the small amount of noise remaining in the signal (thanks to the good signal-to-noise ratio of the original signal).



Revised May, 2023. This page is part of "A Pragmatic Introduction to Signal Processing", created and maintained by Prof. Tom O'Haver , Department of Chemistry and Biochemistry, The University of Maryland at College Park. Comments, suggestions and questions should be directed to Prof. O'Haver at toh@umd.edu.
