This case study demonstrates the application of
several techniques described in this paper to the quantitative
measurement of a peak that is buried in an unstable background,
a situation that can occur in the quantitative analysis
applications of various forms of spectroscopy, process
monitoring, and remote sensing. The objective is to derive a
measure of peak amplitude that varies linearly with the actual
peak amplitude but that is not effected by the changes in the
background and the random noise. In this example, the peak to be
measured is located at a fixed location in the center of the
recorded signal, at x=100 and has a fixed shape (Gaussian) and
width (30). The background, on the other hand, is highly
variable, both in amplitude and in shape. The simulation shows
six superimposed recordings of the signal with six different
peak amplitudes and with randomly varying background amplitudes
and shapes (top row left in the following figures). The methods
that are compared here include smoothing, differentiation,
classical
least squares multicomponent method (CLS), and iterative
non-linear curve fitting.

**CaseStudyC.m** is a
self-contained Matlab/Octave demo function that demonstrates
this case. To run
it, download it. place it in the path, and type "CaseStudyC" at
the command prompt. Each time you run it, you'll get the same
series of true peak amplitudes (set by the" vector
SignalAmplitudes", in line 12) but a different set of background
shapes and amplitudes. The background is modeled as a Gaussian
peak of randomly varying amplitude, position, and width; you can
control the average *amplitude*
of the background by changing the variable
"BackgroundAmplitude" and the average *change*
in the background by changing the variable
"BackgroundChange".

The five methods compared in the figures below are:

1: Top row center. A simple zero-to-peak measurement of the smoothed signal, which assumes that the background iszero.

2: Top row right. The difference between the peak signal and the average background on both sides of the peak (both smoothed), which assumes that the background isflat.

3: Bottom row left. A derivative-based method, which assumes that the background isvery broadcompared to the measured peak.

4: Bottom row center.Classical least squares (CLS), which assumes that the background is a peak ofknown shape, width, and position(the only unknown being theheight).

5: Bottom row right. iterative non-linear curve fitting (INLS), which which assumes that the background is a peak ofknown shapebut unknown width and position. This method can track changes in the background peak position and width (within limits), as long as the measured peak and the backgroundshapesare independent of the concentration of the unknown.

These five methods are listed roughly in the order
of increasing mathematical and geometrical complexity. They are
compared below by plotting the actual peak heights (set by the
vector "SignalAmplitudes") vs the measure derived from that
method, fitting the data to a straight line, and computing the *coefficient
of determination,* R^{2.},
which ideally is 1.0000.

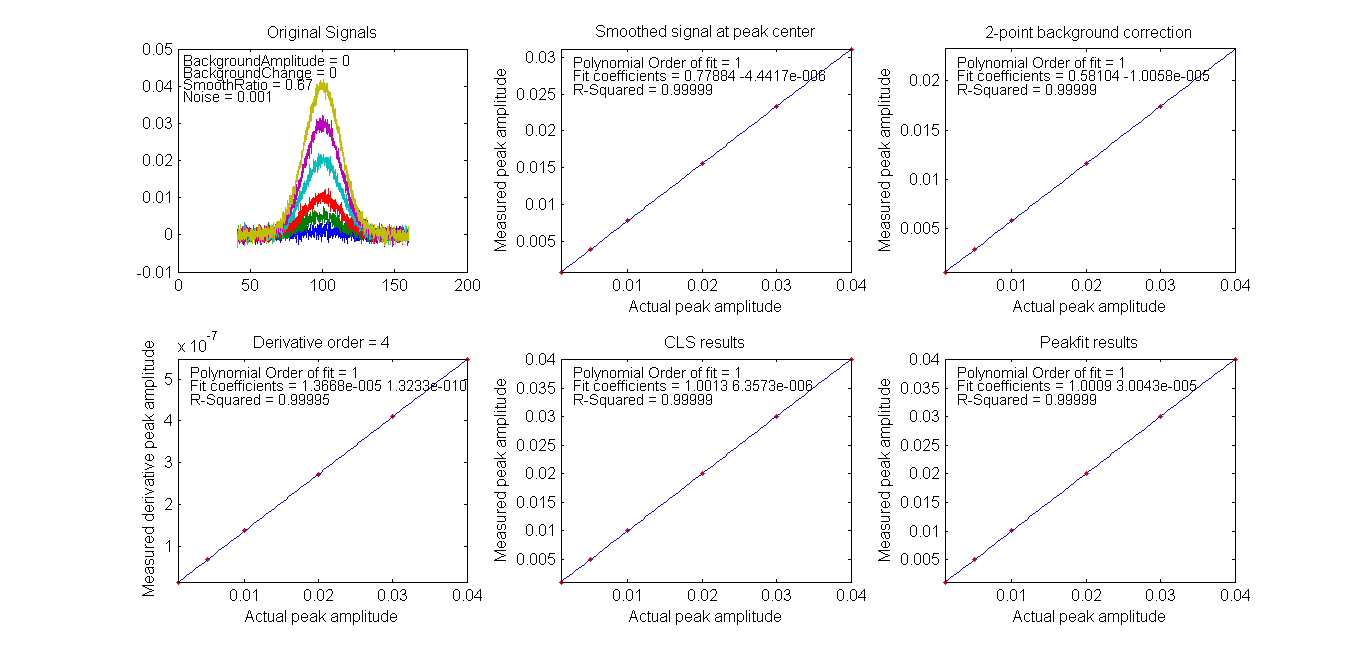

For
the first test (shown in the figure above), both
"BackgroundAmplitude" and "BackgroundChange" are set to zero, so
that only the random noise is present. In that case all the
methods work well, with R^{2.}values all very close to 0.9999. With a 10x higher
noise level (click
to view), all methods still work about equally well, but
with a lower coefficient of determination R^{2}, as might be expected.

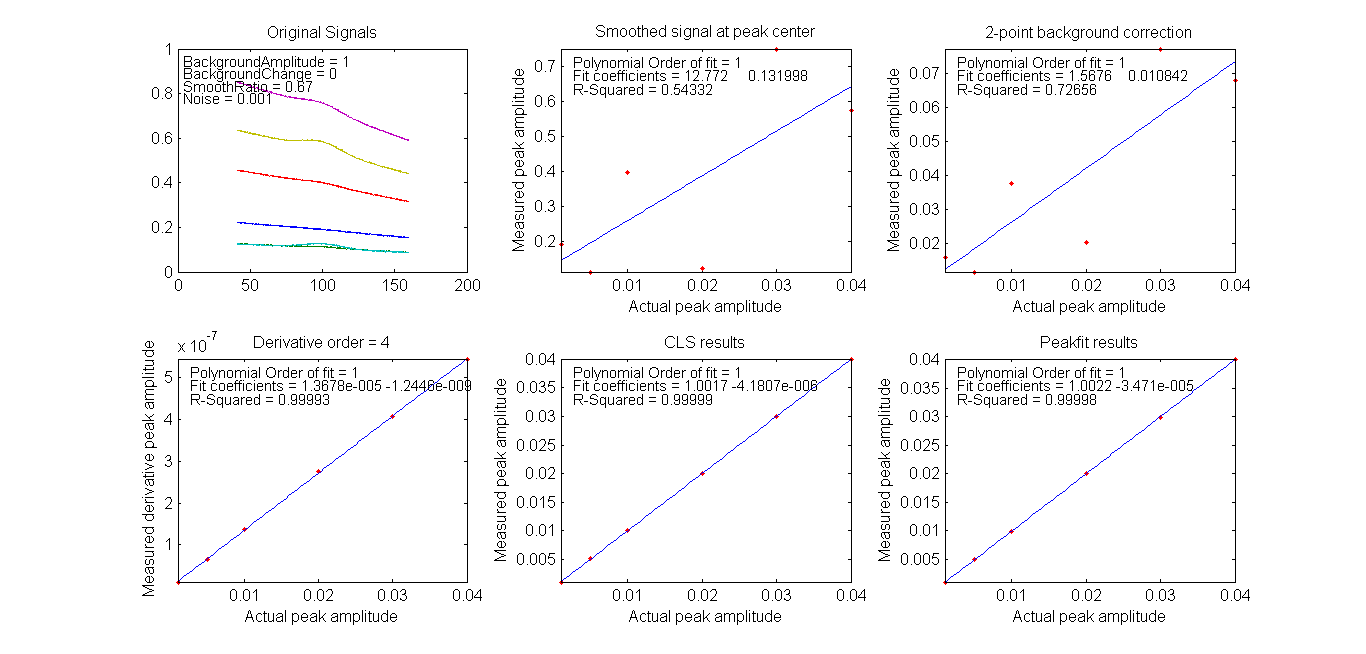

For the second test (shown in the figure immediately above), "BackgroundAmplitude"=1 and "BackgroundChange"=0, so the background has significant amplitude variation but a fixed shape, position, and width. In that case, the first two methods fail, but the derivative, CLS, and INLS methods work well.

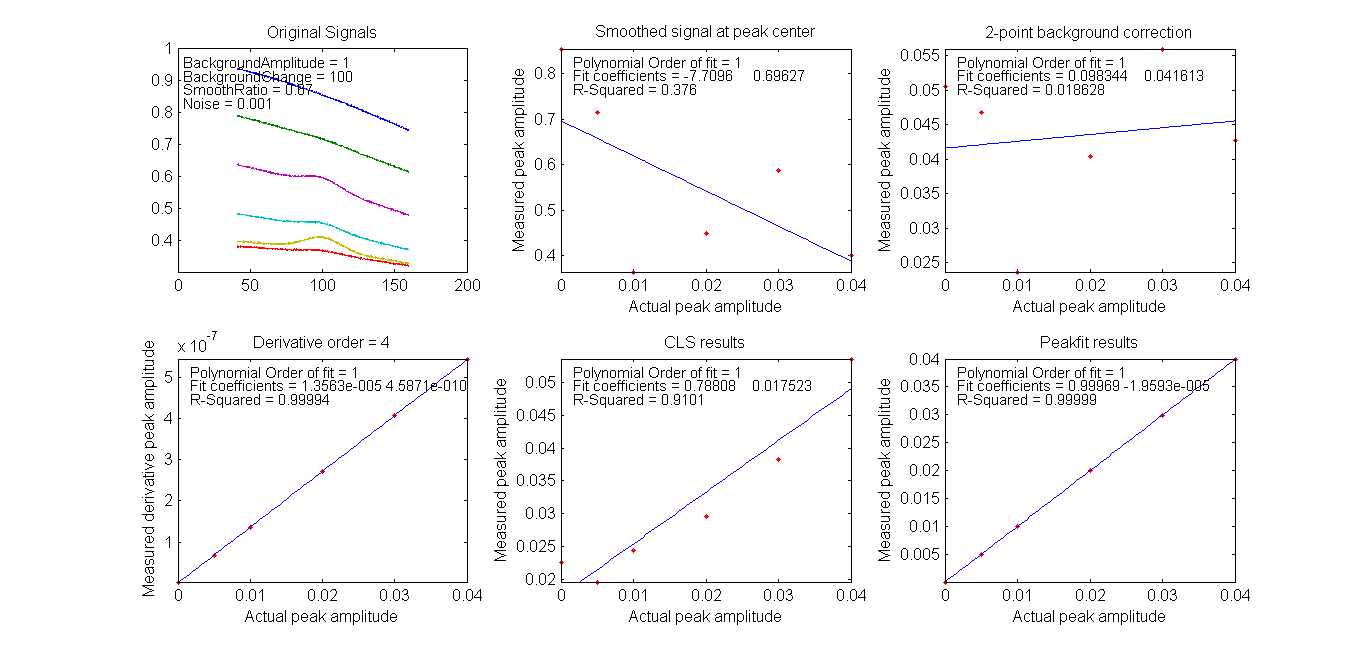

For the third test,
shown in the figure above, "BackgroundAmplitude"=1 and
"BackgroundChange"=100, so the background varies in position,
width, and amplitude (but remains broad compared to the signal).
In that case, the CLS methods fails as well, because it assumes
that the background varies only in amplitude. However, if we go

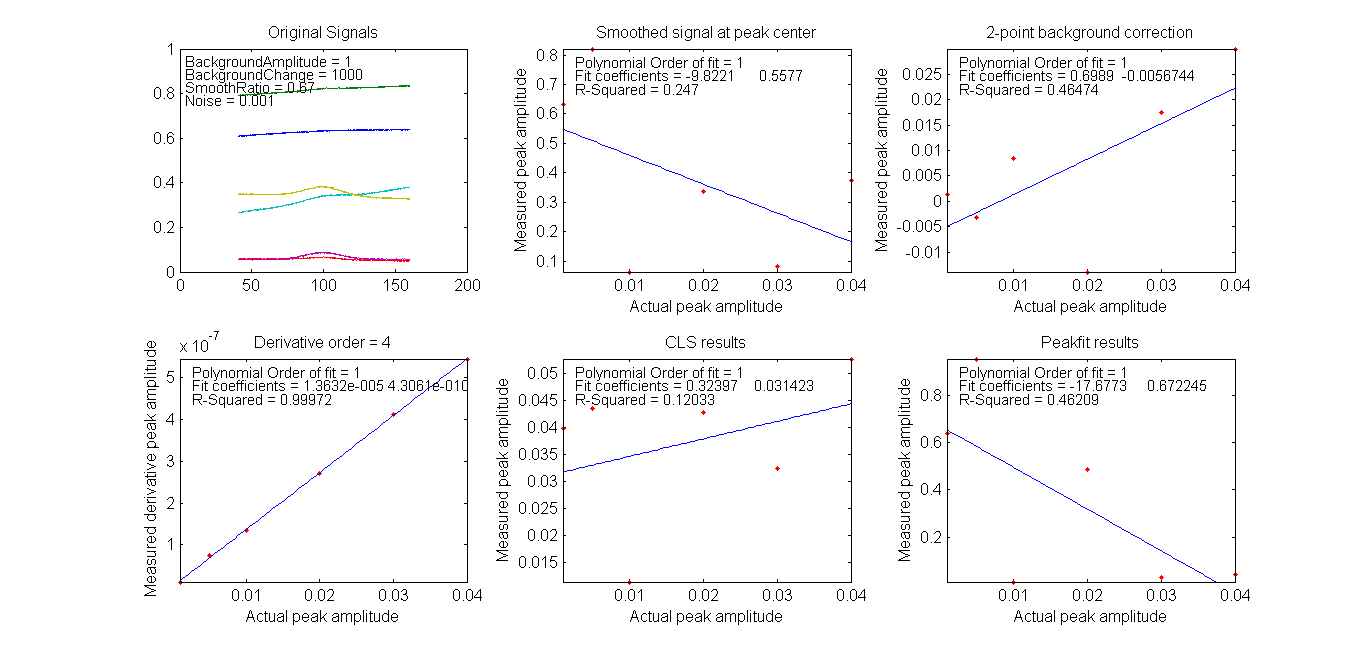

one step further (click to view) and set
"BackgroundChange"=1000, the background shape is now so unstable
that even the INLS method fails, but still the derivative method
remains effective as long as the background is broader than the

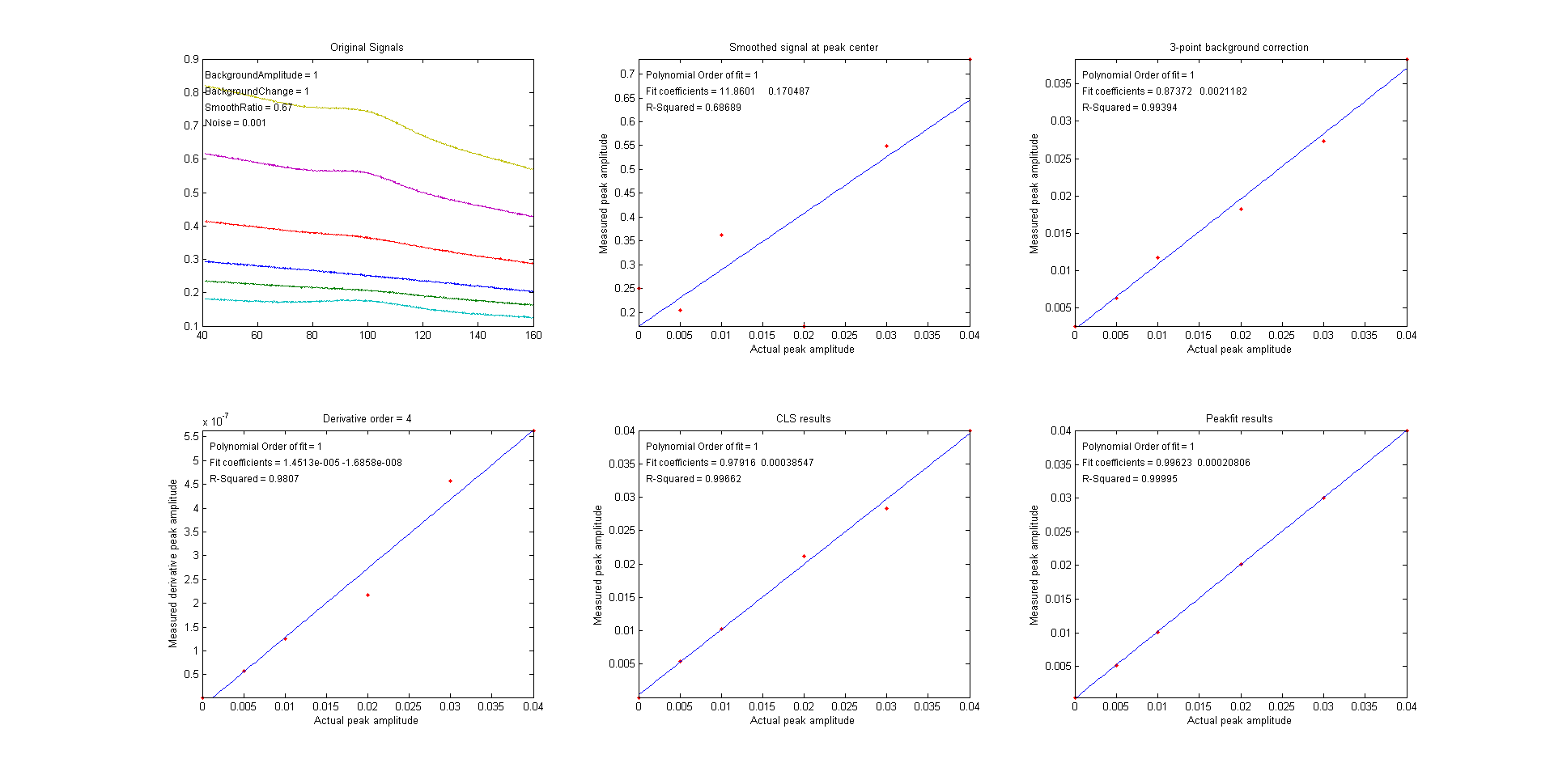

measured peak, no matter what its shape. On the other hand, if
the width and position of the *measured*
peak changes from sample to sample, the derivative
method will fail and the INLS method is more effective (click to view),
as long as the fundamental shape of both measured peak and the
background are both known (e.g. Gaussian, Lorentzian ,etc).

Not surprisingly, the
more mathematically complex methods perform better, on average.
Fortunately, software can "hide" that complexity, in the same
way, for example, that a hand-held calculator hides the
complexity of long division.
