Monochromator

OpenOffice Calc and Excel Versions

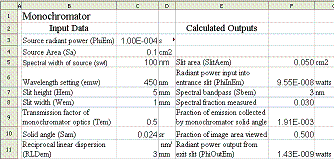

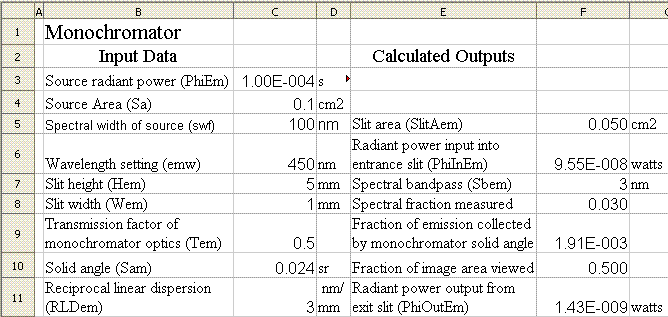

Click to see larger graphic

Computes the radiant power exiting from the exit slit of a monochromator, given the radiant power incident on the entrance slit and the optical characteristics of the monochromator.

Assumptions: Light source on the entrance slit is a continuum source whose spectral distribution is much wider than the spectral bandpass of the monochromator; entrance and exits are rectangular and equal; entrance slit area is filled by the source image.

View Equations (.pdf)
Download spreadsheet in OpenOffice format (.ods)
Download spreadsheet in Excel format (.xls)

Other simulations that employ a monochromator:
Animated Diffraction Grating

Signal-to-Noise Ratio of Absorption Spectrophotometry
Instrumental Deviations from Beer's Law

Fluorescence Spectroscopy Signal-to-Noise Ratio
Comparison of Calibration Curve Fitting Methods in Absorption Spectroscopy
Effect of Slit Width on Signal-to-Noise Ratio in Absorption Spectroscopy
Scanning Fluorescence Spectrometer
U.V.-Visible Spectrophotometer
Dual Wavelength Spectrophotometer
Effect of Slit Width on Emission Spectroscopy SNR

Spectroscopy of Atomic Absorption
Multiwavelength Spectrometry
