This is
        a simulation of several techniques described in this paper to
        the quantitative measurement of a peak that is buried in excess of random noise, where the signal-to-noise (S/N) ratio is below 2. (Ordinarily, a
        S/N ratio of 3 is desired for reliable detection).
        The Matlab/Octave script LowSNRdemo.m performs the
        simulations and calculations and compares the results
        graphically, focusing on the behavior of each method as the S/N
        ratio approaches zero.  Four methods are compared:

(1) smoothing, followed by the peak-to-peak measure of the smoothed signal and background;
(2) a peak finding method based on the findpeakG function;
(3) unconstrained iterative least-squares fitting (INLS) based on the peakfit.m function; and
(4) constrained classical least squares fitting (CLS) based on the cls2.m function.
The
measurements
        are carried out over a range of peak heights for which the S/N
        ratio varies from 0 to 2. The noise
        is random, constant, and white. Each time you run the
        script, you get the same set of underlying signals but
        independent samples of the random noise.

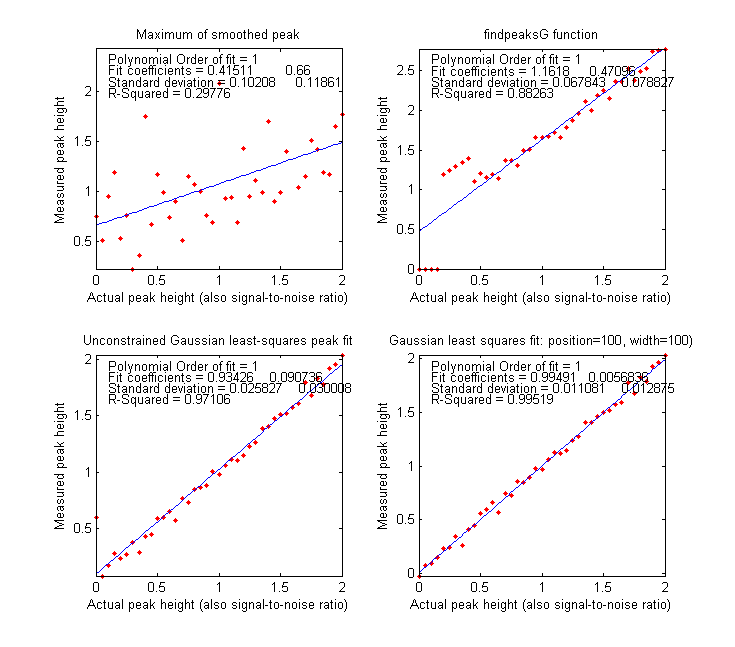

  Results for the initial values in the script are shown
        in the plots on the left and in the table printed below, both of
        which are created by the script  LowSNRdemo.m. The graphs on the
        left show correlation plots of the measured peak height vs the
        real peak height, which should ideally be a straight line with a
        slope of 1, an intercept of zero, and an R-squared of 1.
        As you can see, the simplest smoothed-peak method (upper left)
        is completely inadequate, with a low slope (because smoothing
        reduces peak height) and a high intercept (because even smoothed
        noise has a non-zero peak-to-peak value). The findpeaks function
        (upper right) works OK for height for higher peak heights but
        fails completely below a S/N ratio of 0.5 because the peak
        height falls below the amplitude threshold setting. In
        comparison, the two least-squares techniques work much better,
        reporting much better values of slope, intercept of zero, and
        R-squared. But if you look closely at the low end of the peak
        height range, near zero, you can see that the values reported by
        the unconstrained fit (lower left) occasionally stray from the
        line, whereas the constrained fit (lower right) decrease
        gracefully all the way to zero every time you run the script.
        Essentially the reason why it's even possible to make
        measurements at such low S/N ratios is that the data density is very high: that is, there are many data points in each signal
        (about 1000 points across the half-width of the peak with the
        initial script values).


The results are summarized in the table below. The height errors are reported as a percentage of the maximum height (initially 2). (For the first three methods, the peak position is also measured and its relative accuracy is reported. The constrained classical least squares fitting does not measure peak position but rather assumes that it remains fixed at the initial value of 100). You can see that the CLS method has a slight edge in accuracy, but you have to consider also that this method works well only if the peak shape, position, and width are known. The unconstrained iterative method can track changes in peak position and width.
Number of points in half-width of
          peak: 1000
        Method
Height
            Error     Position Error
          Smoothed peak
          21.2359%        120.688%
          findpeaksG.m
          32.3709%        33.363%
          peakfit.m
          2.7542%
          4.6466%
          cls2.m
1.6565%

 You can change
        several of the factors in this simulation to test the robustness
        of these methods. Search for the word 'change' in the comments
        for values that can be changed. Reduce MaxPeakHeight (line 8) to
        make the problem harder. Change peak position and./or width
        (lines 9 and 10) to show how the CLS method fails. As usual, the
        more you know, the better your results. Change the increment
        (line 4) to change the data density; more data is always better.


      (Surprisingly, as it will be shown in Appendix
          U: Measurement Calibration, it
          is not even necessary to have an accurate peak shape model
      in order to get a good correlation between measured
        and actual height).

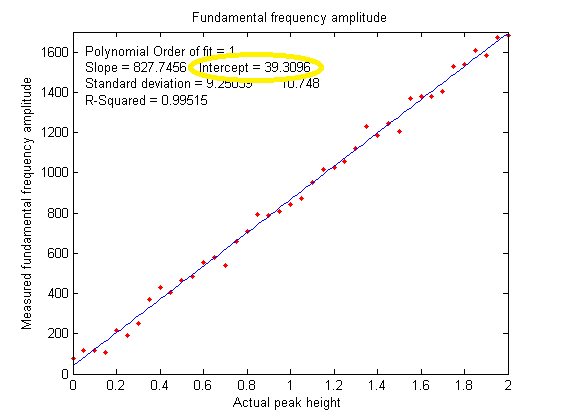

        LowSNRdemo.m also computes the power spectrum of the signal and
        the amplitude (square root of the power) of the fundamental,
        where most of the power of a broad Gaussian peak falls, and
        plots it in Figure(2). The correlation to peak
        height is similar to the CLS method, but the
          intercept is higher because there
        is a non-zero quantity of noise even in that one frequency slice
        of the power spectrum.

          We are now, in the 21st century, into the era of "big
        data", where high-speed automated data systems can acquire,
        store, and process greater quantities of data than ever before.
        As this little example shows, greater quantities of data allow
        researchers to probe deeper and measure smaller effects that
        previously.
