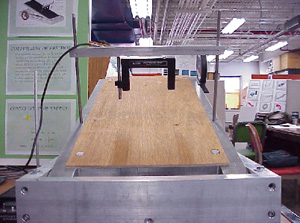

Sliding Plates

Interchangeable

Snaps onto apparatus

Materials

• Steel
• Aluminum
• Pine Wood

Test Blocks

1x2x44

3 rough sides

Materials

• Steel
• Aluminum
• Pine Wood
• Cast Iron
• Plastic

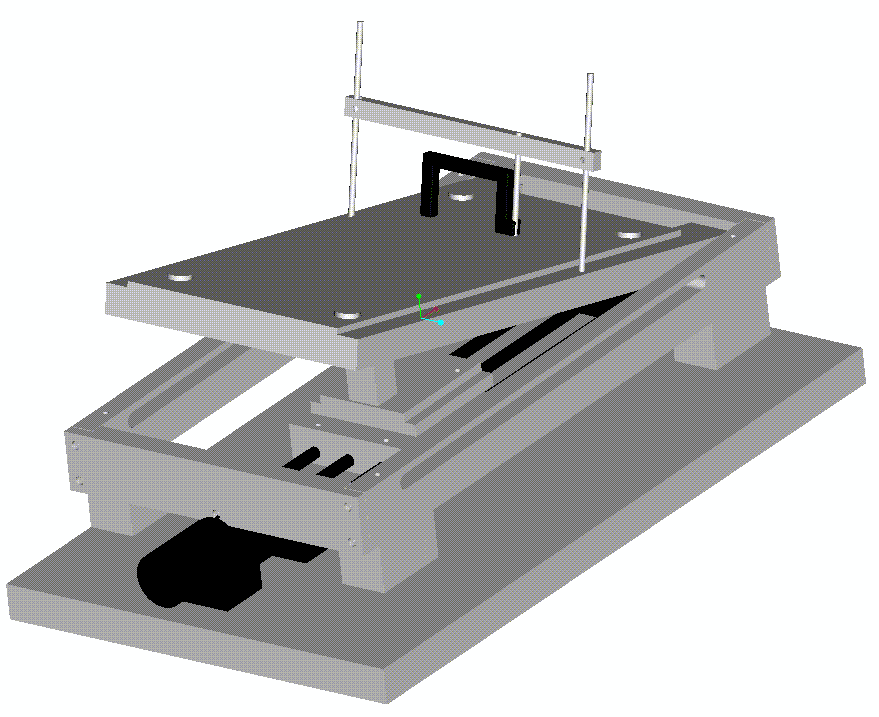

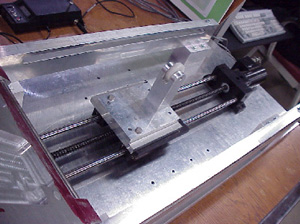

Lift-Assembly

• Variation of Angle Theta
  of the Mounting Plate
• Stepper-Motor

• Torque-Driven Track

• Single Support Arm

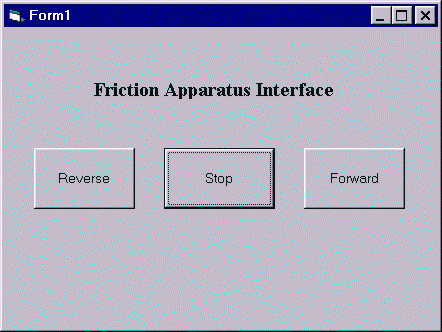

Graphical-User Interface (GUI)

GUI created with Visual Basic Program

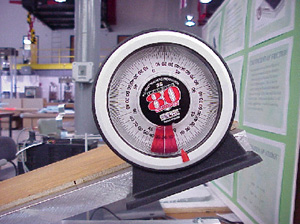

Angle Finder

Dial that displays incline of ramp

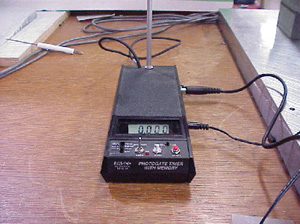

Photogate-Timer

Variable height to allow for
flexibility.
