Steps
Used to Analyze Molar in ANSYS:
1.)
Import File from Pro/E
2.)
Add Constraints
3.)
Add Loads and Assign Load Directions
4.)
Modify Molar Properties
5.)
Run Analysis
6.)
Open Window to View Results
a.) Specify What Will Be Display
 |

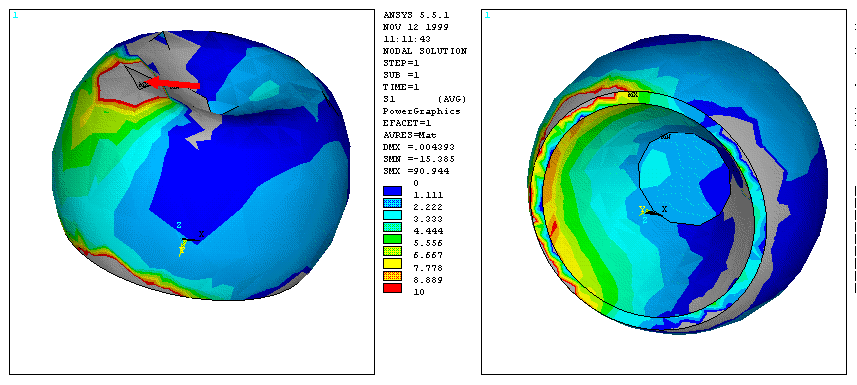

Stress Distribution
|
