Team 6 David Burger Adeleke Kevin Nims Amy Greenwood Objective 1: To learn how to integrate CAD/CAM operations together. Objective 2: To learn to use the Lathe. Progress-1. Drew dogbone tension and fatigue specimen in Pro-E.

2. Used Pro-Manufacture to create G-Code for each specimen.

3. Handwrote G-Code for tension specimen.

4. Used Lathe to Manufacture G-Code.

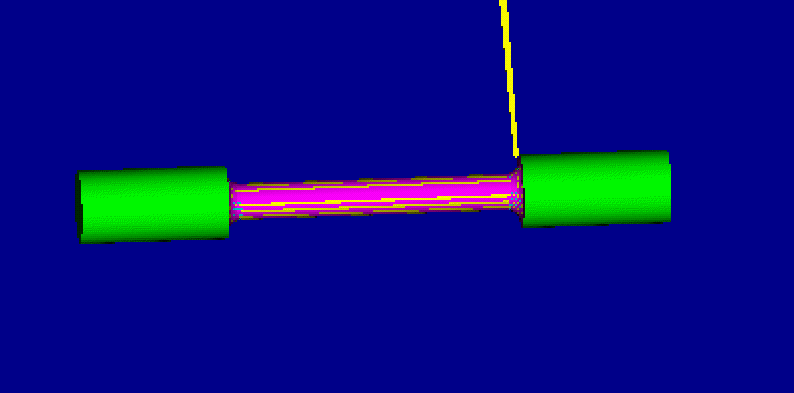

Tension Specimen

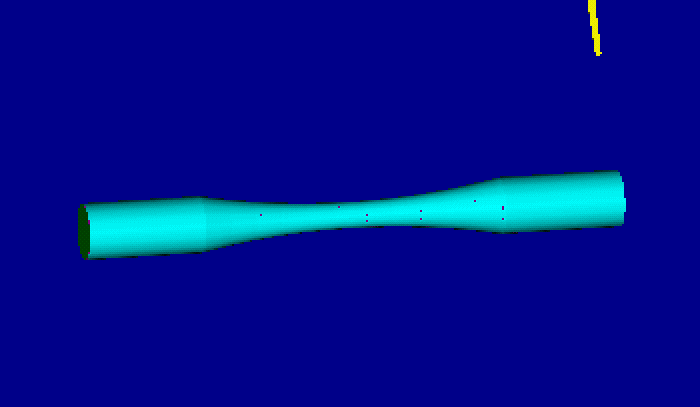

Fatigue Specimen

Example G-Code

Fatigue Specimen Tension Specimen
N1 G20 N1 G20

N2 G0 T0101 N2 G0 T0101

N3 M41                                                                                                                                    N3 M41

N4 G97 S300 M3                                                                                                                      N4 G97 G0 X.5 Z-1.0156 S300 M3

N5 G0 X.5 Z4.5 M8 N5 G98 G1 X.45 F120.

N6 G98 G1 Z3.5 F120. N6 G2 X.2812 Z-1.1 R.0844 F169.7056

N7 G2 X.5 Z1. R6.3125 F169.7056 N7 G1 Z-2.9 F120.

N8 G1 Z0. F120. N8 G2 X.45 Z-2.9844 R.0844 F169.7056

N9 X2.5 N9 G1 X.5 F120.

N10 M9 N10 M5 M1 M30

N11 M5 M1 M30 %
