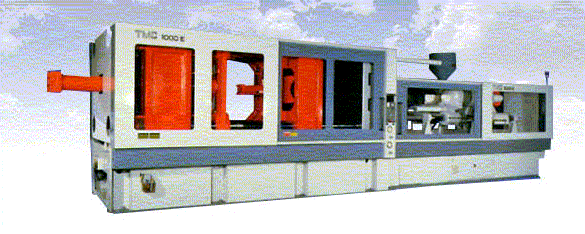

INJECTION MOLDING MACHINE

MODEL ACT50-56

TEAM 6

Veronica Otero

David Bever

Stephanie Hill

Samuel Negash

Kai Sen Hsu

Introduction

As senior mechanical engineers, we strive to learn and prepare ourselves for the work field. In ENME 414, we have learned a great deal about the importance of visual communications. One of the best tools to engineers is a CAD program in which they use to communicate with each other. Therefore, it is vital that the drawings have considered all the people who are to read it and understand it. For example, the technicians who will assemble this will need to know specific items in order to assemble it.

We've also learned the value of good teamwork. When dealing with communication tools, we have to constantly work together; otherwise, the end result will have errors. For example, parts may not fit together due to rounding errors, etc. Team 6 has gain these knowledge and more in doing this project.

Accomplishments

We have accomplished five main tasks. The Drawing of the machine, the presentation, the report write up, animation, and the webpage (that means this thing here!!). There are pictures of the machines imported from Pro/E, our Report, and our TWO animations!! Hey, this is some cool stuff that you must check out!!

Legal Stuff:

All pictures and files are sole proprietary items that belongs to team 6, you may not use or download it without our consent.
