Phase 2: Click-and-Drop Editor for Java-Enabled Diagrams

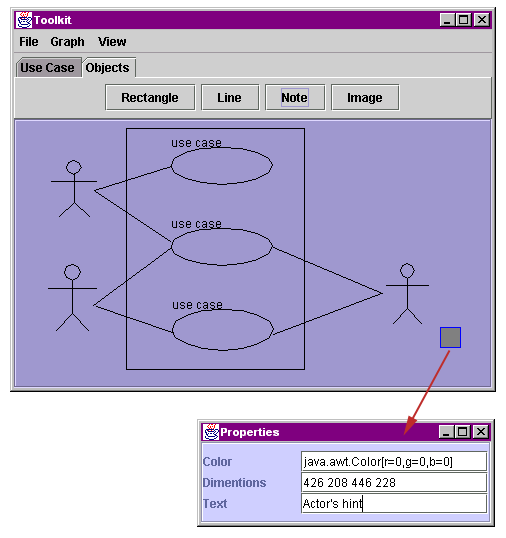

Download ToolKit 0.01 (November, 2001) Version 0.01 of our click-and-drop UML diagram editor is available for inspection and download.

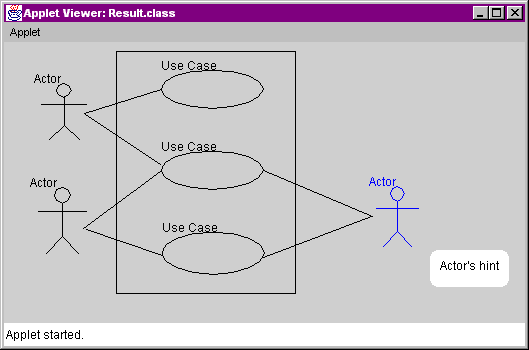

Our Wishlist of Diagram Toolkit Capabilities is as follows: Click-and-drop assembly of diagrams composed of simple shapes, images, pop-up hints, html links, and hierarchy and network links. Saves diagrams in XML format. Automatic export to Java-enabled applets (perhaps via a wizard). XML import of UML diagrams created in professional UML toolkits (this is time consuming to implement and maintain).

Section 4-8: November, 2001.
