Silicon Gas-Phase Equilibrium Model

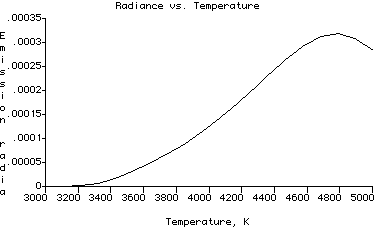

Effect of temperature on the atomic emission radiance of silicon atoms Si, Si+, and SiO species, when an Si sample is nebulized from solution into a flame or plasma at thermal equibrium with constant electron and O radical concentrations. Based on Ingle and Crouch, page 195-197.



   8.1       Ei                eV        ionization energy
   8.2       Ed                eV        dissociation energy
   16        Mx                amu       Molecular weight of X
   28.1      Mm                amu       Atomic weight of metal atoms M
   44.1      Mmx               amu       Molecular weight of MX
   4000      T                 K         Temperature of flame/plasma
             ntotal  7.8225E9  cm-3      number density of metal in all forms
             pm      3.911E-9  atm       partial pressure of metal atoms
             nm      7.17663E9 cm-3      number density of metal atoms M
             ni      546273901 cm-3      number density of metal ions M+
   1E13      ne                cm-3      number density of electrons
   1E15      nx                cm-3      number density of species X
             nmx     99597608  cm-3      number density of MX molecules
             Kd      7.2056E16 cm3       diatomic dissociation constant
             Ki      7.6118E10 cm3       ionization constant
             alphai  .07073427           degree of ionization
             betaa   .91743413           free atom fraction
   5         F                 mL/min    solution flow rate
   .1        epsilon                     nebulization/vaporization efficiency
   1         go                          statistical weight of lower state
   1         g1                          statistical weight of upper state
             c       .00001    mole/L    analyte molar concentration
   1         cg                g/mL     concentration
   10        Q                 L/min     total gas flow rate
   1         ZT                          partition coefficient
   6         nT                moles     relative # moles burnt gases
   7         n298              moles     relative # moles unburnt gases
   100       MW                          formula weight of analyte
   400       lambda            nm        wavelength of light
   1E8       Aji               sec-1     Einstein A coefficient
   10        l                 cm        path length
             Be                w/sr/cm2  total line emission radiance


ntotal=6e17*F*epsilon*go*c/(Q*ef*ZT)	Equation 7-9
ef=(nT*T)/(n298*298)	Equation 7-8
n1 = nm*(g1/go)*exp(-E/(T*1.3805e-23))	Boltzmann equation 2-14
Be=Aji*h*nu*n1*l/(4*Pi()*ZT)	Equation 2-15

Download the Silicon Gas-Phase Equilibrium Model.
