Simultaneous A/D and D/A Conversion
Equipment needed: IBM-PC, PCL-812 analog data acquisition/control
board, digital volt meter, operational amplifier manifold, resistors, diode.
1. Install the PCL-812 board into any available slot of the IBM-PCs bus. The
base address A is determined by the base address switch on the board; the
factory default is hex 220 (544 decimal). The PCL-812 board has a 12 bit ADC
with 16 input channels and an output range of -10 to +10 volts. Refer to the
manual to find out how to program the ADC.
2. The objective of this experiment is to construct and test a system to
record the current-voltage characteristic curves of unknown two-terminal
devices, that is, to apply a range of voltages across the device and measure
the resulting current flow. You will use the DAC in the PCL-812 board to
generate the voltages and the ADC to measure the voltage across the device and
(by the application of Ohm's Law) the current through the device. Such a setup
might be used, for example, to measure the characteristics of an electrochemical cell or a new organic semiconductor. We will test our setup first
with a simple resistor (which has a linear IE curve whose slope is given by its
resistance) and then use it to test a small diode (which has a more interesting
non-linear, temperature-sensitive, IE curve).

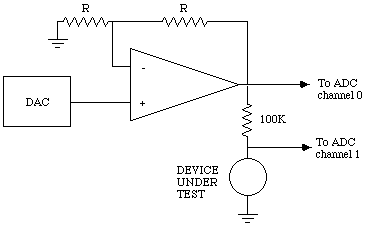

3. In the circuit shown here, an operational amplifier boosts the 5 volt
output of the DAC to 10 volts and applies it to the Device Under Test through a
10K Ohm series resistor. ADC channel 1 measures the voltage across the
device. The current through the device is given, according to Ohm's
Law, by the ratio of the voltage across the 10K Ohm series resistor
divided by its resistance (assuming that no current is drawn by the channel 1
input - a reasonable assumption). The voltage across the series resistor is
the difference between the channel 1 voltage and the channel 0 voltage.
Therefore, the computer can easily calculate the current through the device.
4. Write a program to measure the IE curve from 0 to 10 volts total applied
voltage and save the data as a text file containing two columns of data (E
across device and I through the device).
Lab report: Submit your program listing (print-out only) along with a
print-out of the data.
