(Continuation of Using Matlab for First Order ODEs)

- Numerical Solution
- Converting problems to first order systems

Plotting the solution

Finding numerical values at given t values

Making phase plane plots - Vector fields for autonomous problems
- Plotting the vector field

Plotting the vector field together with solution curves - Symbolic Solution
- Example with 2nd order problem

Plotting the solution

Finding numerical values at given t values

Example with first order system

Plotting the solution

Finding numerical values at given t values

Making phase plane plots

**Example problem:** The angle *y*
of an undamped pendulum with a driving force sin(5 *t*) satisfies the differential equation

y'' = -sin(y) + sin(5t)

and the initial conditions

y(0) = 1

y'(0) = 0.

**If your problem is of order 2 or higher: rewrite
your problem as a first order system.** Let
*y*_{1}=*y* and *y*_{2}=*y*', this
gives the first order system

y_{1}' =y_{2},

y_{2}' =-sin(y_{1}) + sin(5t)

with the initial conditions

y_{1}(0) = 1

y_{2}(0) = 0.

**Define an @-function f**

`f`

must be specified as a column vector using
`[`

...`;`

...`]`

(`[`

...`,`

...]). In the definition of
`f`

, use **y(1)**

for
**y(2)**

for
`f`

should have the
form

`f = @(t,y) [`

expression for y_{1}'`;`

expression for y_{2}'`];`

You have to use `f = @(t,y)...`

even if `t`

does not occur in your formula. For our example the first component of
`f`

is * y*_{2}, the second component is
-sin(*y*_{1}) + sin(5 *t*) and we define

`f = @(t,y) [y(2); -sin(y(1))+sin(5*t)]`

**To plot the numerical solution:** To
obtain plots of all the components of the solution for t going from t0 to t1
use

where
**ode45(f,[t0,t1],[y10;y20])**`y10`

, `y20`

are the initial values for
*y*_{1}, *y*_{2} at the starting point
`t0`

. In our example we get a plot for *t* going from 0 to
20 with the initial values `[1;0]`

using

`ode45(f,[0,20],[1;0])`

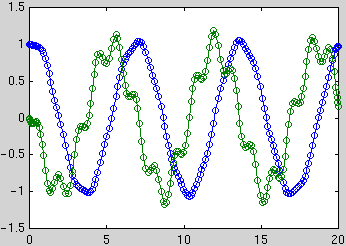

This shows the two functions
*y*_{1}(*t*)=*y*(*t*) (blue) and
*y*_{2}(*t*)=*y*'(*t*) (green).

The circles mark the values which were actually computed (the points are
chosen by Matlab to optimize accuracy and efficiency). You can obtain a vector
`ts`

and a matrix `ys`

with the coordinates of these
points using

. You can then plot the solution
curves using **[ts,ys] =
ode45(f,[t0,t1],[y10;y20])**

(this is a way to
obtain a plot without the circles). Note that each row of the matrix
**plot(ts,ys)**`ys`

contains 2 entries corresponding to the two components of the
solution at that time:

`[ts,ys] = ode45(f,[0,20],[1;0]); % find ts, ys, but don't show`

plot(ts,ys) % make plot of y1 and y2 vs. t

[ts,ys] % show table with 3 columns for t, y1, y2

You can obtain the vector of `y1`

values in the first column of
`ys`

by using `ys(:,1)`

, therefore

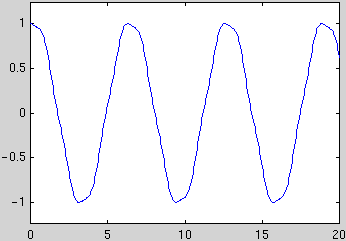

`plot(ts,ys(:,1))`

plots only
*y*_{1}(*t*).

**To obtain numerical values at specific
****t**** values:** You can
specify a vector `tv`

of t values and use

. The first element of the vector
**[ts,ys] =
ode45(f,tv,[y10;y20])**`tv`

is the initial t value; the vector `tv`

must have
at least 3 elements. E.g., to obtain the solution with the initial values
`[1;0]`

at t = 0, 0.5, ..., 10 and display the results as a table
with 3 columns *t*, *y*_{1}, *y*_{2},
use

`[ts,ys]=ode45(f,0:0.5:10,[1;0]);`

[ts,ys]

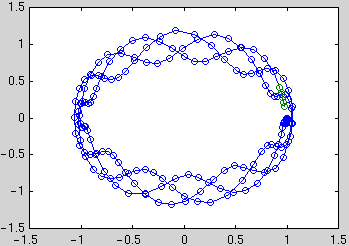

**To plot trajectories in the phase
plane:** To see the points with coordinates (
*y*_{1}(*t*), *y*_{2}(*t*) ) in
the *y*_{1}, *y*_{2} plane for *t* going
from 0 to 20 type

`options=odeset('OutputFcn','odephas2');`

ode45(f,[0,20],[1;0],options)

This shows the points while they are being computed (the plotting can be stopped with the stop button). To first compute the numerical values and then plot the curve without the circles, type

`[ts,ys] = ode45(f,[0,20],[1;0]); % find ts, ys, but don't show`

plot(ys(:,1),ys(:,2)) % make plot of y2 vs. y1

If the right hand side function **f**(*t*,
**y**) does not depend on *t*, the problem is called
*autonomous*. In this case the behavior of the differential equation
can be visualized by plotting the vector **f**(*t*,
**y**) at each point **y** =
(*y*_{1},*y*_{2}) in the
*y*_{1},*y*_{2} plane (the so-called *phase
plane*).

**First save the files ****vectfield.m**** and
vectfieldn.m** into the same
directory where your m-files are.

**To plot the vector field** for y1 going
from a1 to b1 with a spacing of d1 and y2 going from a2 to b2 with a spacing
of d2 use

. The
command **vectfield(f,a1:d1:b1,a2:d2:b2)**

works in the same way, but
produces arrows which all have the same length. This makes it easier to see
the direction of the vector field.**vectfieldn**

**Example:** The undamped pendulum problem *without a
driving force* has the differential equation *y*'' = -sin(*y*). This gives the first order system

y_{1}' =y_{2},

y_{2}' =-sin(y_{1})

Here we define

`f = @(t,y) [y(2);-sin(y(1))]`

We can plot the vector field and 10 trajectories with starting points (0,0), (0,0.3), ..., (0,2.7) in the phase plane as follows:

vectfield(f,-2:.5:8,-2.5:.25:2.5) hold on for y20=0:0.3:2.7 [ts,ys] = ode45(f,[0,10],[0;y20]); plot(ys(:,1),ys(:,2)) end hold off

Use the

command. Specify all
**dsolve****differential equations** as strings, using

for **Dy***y*'(*t*),

for **D2y***y*''(*t*) etc. .

For an initial value problem specify the **initial
conditions** in the form

,
**'y(t0)=y0'**

etc. . The last argument of
**'Dy(t0)=y1'**`dsolve`

is the name of the independent variable, e.g.,
`'t'`

.

**Example:** For the differential
equation

y'' = -y+ sin(5t)

use

`sol = dsolve('D2y = -y + sin(5*t)','t')`

In this case, the answer can be simplified by typing

`s = simple(sol)`

which gives the general solution
`-1/24*sin(5*t)+C1*cos(t)+C2*sin(t)`

with two constants
`C1`

, `C2`

.

To solve the ODE with initial conditions *y*(0) = 1*, y*'(0)
= 0 use

`sol = dsolve('D2y = -y + sin(5*t)','y(0)=1','Dy(0)=0','t')`

Then `s = simple(sol)`

gives the solution
`-1/24*sin(5*t)+5/24*sin(t)+cos(t)`

.

**To plot the solution curve** use
`ezplot`

:

`ezplot(sol, [0,20])`

**To obtain numerical values at one or more t
values** proceed exactly as in the
case of a first order ODE.

**Example for system of ODEs:** For the
system

y_{1}' =y_{2},

y_{2}' =-y_{1}+ sin(5t)

with the initial conditions

y_{1}(0) = 1

y_{2}(0) = 0

type

`sol = dsolve('Dy1=y2','Dy2=-y1+sin(5*t)','y1(0)=1','y2(0)=0','t')`

which gives the somewhat strange response

`sol =`

y1: [1x1 sym]

y2: [1x1 sym]

This means that the two components of the solution can be accessed as

and **sol.y1**

: Typing**sol.y2**

`sol.y1`

gives
`-2/3*sin(t)*cos(t)^4+1/2*sin(t)*cos(t)^2+1/6*sin(t)+cos(t)`

. This
can be simplified by typing

`s1 = simple(sol.y1)`

which gives `-1/24*sin(5*t)+5/24*sin(t)+cos(t)`

. For the second
component `y2`

of the solution we proceed in the same way:
Typing

`s2 = simple(sol.y2)`

gives `-sin(t)-5/24*cos(5*t)+5/24*cos(t)`

.

**To plot the solution curves** use
`ezplot`

:

`ezplot(sol.y1, [0,20])`

hold on

ezplot(sol.y2, [0,20])

hold off

**To obtain numerical values** use
`double(subs(sol.y1,'t',tval))`

where `tval`

is a number
or a vector of numbers. E.g., the following commands generate a table with
three columns `t`

, `y1`

, `y2`

for t=0, 0.5,
..., 10:

`tval = (0:0.5:10)'; % column vector with t-values`

yval = double(subs([sol.y1,sol.y2],'t',tval)); % 2 columns with y1,y2

[tval, yval] % display 3 columns together

**To plot the solution in the phase plane**
use a similar approach with more t values:

`tval = (0:0.1:10)'; % column vector with t-values`

yval = double(subs([sol.y1,sol.y2],'t',tval)); % 2 columns with y1,y2

plot(yval(:,1),yval(:,2)) % plot col.2 of yval vs. col.1 of yval
